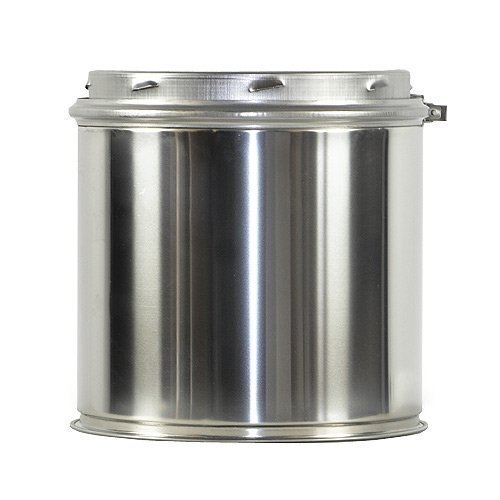

Shasta Vent 6" x 8" Class A, All Fuel, Double Wall, Insulated, SS "Chimney Pipe" 6" Dia. x 8" Length

This Shasta Vent Class-A, All-Fuel HT Chimney Pipe section is 6" inside diameter, 8" outside diameter, and 8" overall length. It is Shasta Vent part number 6A-08. This short pipe section is typically used for a thru-the-wall installation to penetrate the wall and connect to a Tee (6A-T). On the inside of your wall you would typically transition from stove pipe to this Class A chimney pipe using our Finshing Collar (6A-FC). This short pipe section is also commonly used between elbows to achieve a specific off-set. The Shasta Vent All-Fuel, HT Chimney system is a double-wall, insulated, Stainless Steel, Class A Chimney approved for venting wood stoves, fireplaces, and other natural draft heating appliances. It is all-fuel rated and is suitable for wood, natural gas, propane, and coal. It is UL listed to the HT standard of UL 103 to the ETL designation by Intertek Labs and has been tested to 2100 degrees F as might be expected in a creosote fire. Shasta Vent offers a variety of Chimney pipe lengths: 8" (6A-08), 19" (6A-18), 24" (6A-24), 39" (6A-36), 48" (6A-48), and an adjustable pipe from 11" to 20" (6A-18A). These are available in 6” Inside Diameter (6A-) and 8” Inside Diameter (8A-). If you have a 5” or 7” venting requirement, consider the 5” to 6” or 7” to 8” stove pipe increaser which would allow the use of either 6” or 8” chimneys. PLEASE NOTE: Class A Chimney systems cannot be mixed with other brands of Chimneys. All chimney manufacturers have a proprietary (custom) connection which prevents connecting one brand with another. However, Any brand of stove pipe is approved and will connect to the Shasta Vent All-Fuel HT Chimney system. Specifications: 6" Inside Diameter, 8" outside diameter, 8" length, 4 lbs. Materials: 304SS; thin-fiber, ceramic insulation encased between the inner and outer walls. Installation instructions, Catalog, Technical Support, and Design services are available from Shasta Vent, Inc. at 1-844-742-7828.
