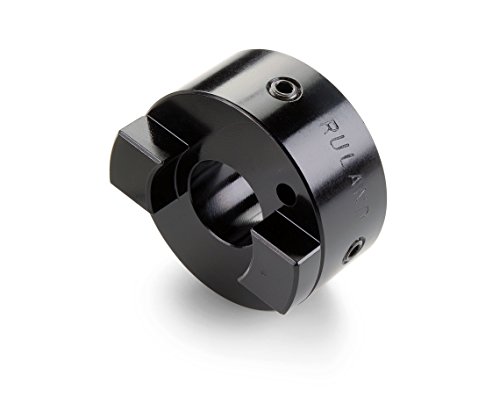

Ruland OST16-4-A Oldham Coupling Hub, Set Screw Style, Black Anodized Aluminum, .250" Bore, 1" OD, 1-1/8" Length
Product ID: B00AOCCOJO
Condition: New
$ 68
includes Duties & VAT
Delivery: 10-20 working days
Ships from USA warehouse.
Secure Transaction
VISA
Mastercard
ozow
Product Description
Ruland OST16-4-A Oldham Coupling Hub, Set Screw Style, Black Anodized Aluminum, .250" Bore, 1" OD, 1-1/8" Length
- Price For: Each Max. Temp. Range (F): 225 Max. RPM: 4500 Size: - Finish: Anodized Aluminum Screw Type: Set Screw Material: Aluminum Style: Oldham Set Screw Max. Angular Misalignment: 0.5 Degrees Screw Size (In.): - Item: Motion Control Coupling Hub Min. Bore (In.): - Setscrew Location: - Max. Bore (In.): - Hub Dia.: 1" Lubrication: -
- Length through Bore (In.): 0.390 Bore Dia.: 1/4" Disc Type: - Keyway (In.): - Torsional Stiffness (Deg./In.-Lbs.): - Max. Axial Misalignment (In.): +/-.004 Clearance Dia. (mm): - Max. Parallel Misalignment (In.): 0.008 Clearance Dia. (In.): 1.000 Torque (In.-Lbs.): - Keyway (mm): - Overall Length (mm): - Screw Size (mm): M4 Overall Length (In.): 1.125 Length through Bore (mm): -
- Outside Dia. (mm): - Max. Bore (mm): - Outside Dia. (In.): 1.000 Min. Bore (mm): - Country of Origin (subject to change): United States
Carefully made by Ruland in Marlborough, MA, Oldham couplings are comprised of two hubs pressed fit with either an acetal or nylon disk. Oldham couplings disengage if the disc breaks, acting as a mechanical fuse. Well-suited for handling large amounts of parallel misalignment. Hub material is type 2024 T351 high strength aluminum with a black anodized finish and M4 forged alloy steel set screws. Maximum is 4,500 RPM. RoHS and Reach compliant. Also called a universal coupling, shaft coupling, or coupler.
Technical Specifications
Country
USA
Binding
Misc.
Brand
Ruland
EAN
0634529062104
Label
Ruland
Manufacturer
Ruland
MPN
OST16-4-A
NumberOfItems
1
PartNumber
OST16-4-A
Publisher
Ruland
Studio
Ruland
