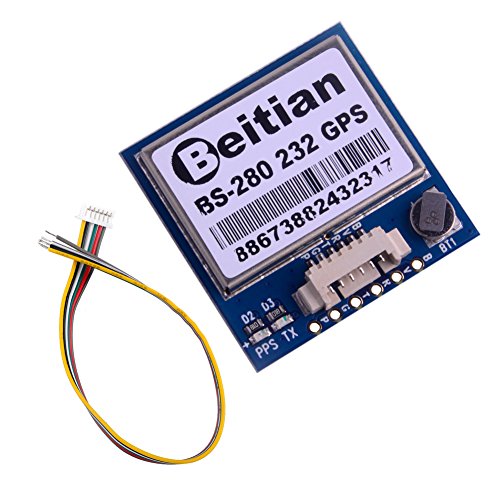

Beitian BS-280 GPS Module RS232 Level U-G7020-KT with Flash + GPS Antenna for Pixhawk APM Glonass BeiDou Geekstory
Product Description
Beitian BS-280 GPS Module RS232 Level U-G7020-KT with Flash + GPS Antenna for Pixhawk APM Glonass BeiDou Geekstory
- Its chipset is U-G7020-KT for ublox gps module.
- This rs232 gps support 4800bps to 921600bps,but default is 9600bps
- The BS-280 gps module is 1Hz-10Hz, default 1Hz
- You will receive 1pcs ublox gps and 1pcs gps antenna
- For documentation, please feel free to contact me.
Description:
Chipset: U-G7020-KT
Receiving Format: GPS,QZSS and SBAS
Frequency: GPS L1,SBAS L1
Channels: 56 Searching Channel
Tracking: -162dBm
Reacquisition: -160dBm
Cold start: -148dBm
Position Horizontal: 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Velocity: 0.1m/sec 95% (SA off)
Timing: 1us synchronized to GPS time
Cold Start: 29s
Warm Start: 25s
Hot Start: 1S
Support Rate: 4800bps to 921600bps,Default 9600bps
Data Level: RS232
Data Protocol: NMEA-0183 or UBX, Default NMEA-0183
Concurrent GNSS: 1Hz-10Hz,Default 1Hz
Altitude: 50,000m Max
Velocity: 515m/s Max
Acceleration: Less than 4g
VCC: DC Voltage 3.6V-5.5V,Typical: 5.0V
Current: Capture [email protected]
Dimension: 28mm*28mm*10mm
Connector: 1.25mm spacing between the 6pins patch seat
Built-in LED:
TX LED: blue.The data output, TX LED flashing PPS LED: red.PPS LED not bright when GPS not fixed, flashing when fixed
Package Includes:
1 X U-G7020-KT GPS Module
1 X Cable
Technical Specifications
