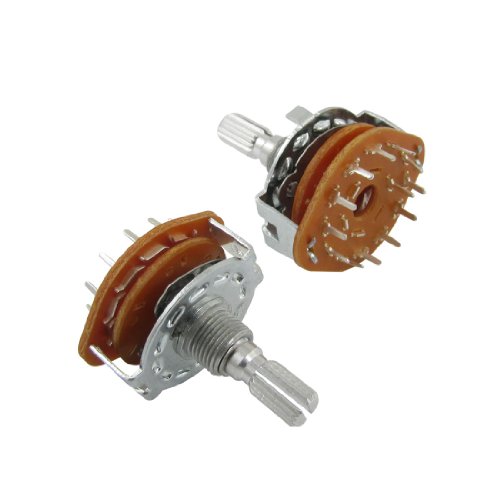

uxcell Split Shaft AC 125V 0.3A 250V 0.6A 1 Pole 12 Positions Rotary Switch (Bag of 2)
Product Description
uxcell Split Shaft AC 125V 0.3A 250V 0.6A 1 Pole 12 Positions Rotary Switch (Bag of 2)
- Product Name : Rotary Switch;Model No. : RS25-1-12;Type : 1 Pole 12 Positions
- Rated Voltage & Current : AC 125V, 0.3A,AC 250V, 0.6A;Click Number : 12;Rotational Angle : Step Angle 30 Degree
- Contact Resistance : Less than 20mohm;Insulation Resistance : More than 100Mohm at DC500V;Withstand Voltage : For 1 minute at 500V
- Shaft Diameter : 6mm / 0.236";Threaded Collar Diameter : 8.7mm / 0.34";Overall Size(Approx.) : 31 x 25 x 36mm / 1.2" x 1.0" x 1.4"(L*W*H)
- Net Weight : 23g;Package Content : 2 Pcs x Rotary Switch
- 1 Pole 12 Positions rotary switch, 6mm diameter knurled split shaft, step angle 30 degree.
Technical Specifications
