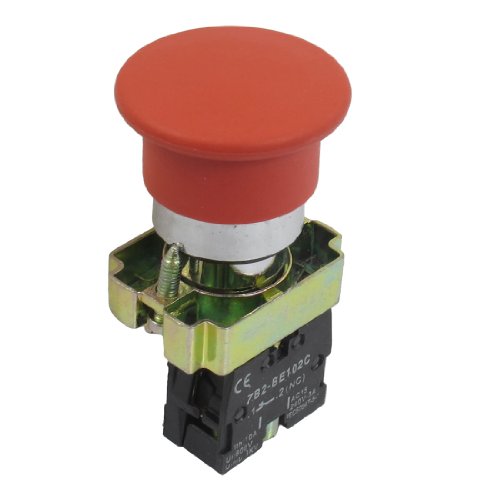

uxcell 22mm NC Red Mushroom Momentary Push Button Switch 600V 10A ZB2-BC42
Product Description
uxcell 22mm NC Red Mushroom Momentary Push Button Switch 600V 10A ZB2-BC42
- Item Name : Push Button Switch;Action Type : Momentary;Contact Type : 1 NC;Ith : 10A
- Ui : 600V;Uimp : 6KV;AC 15 : 240V 3A
- Button Diameter : 40mm / 1.6";Mount Hole Diameter : 22mm / 0.87"(7/8");Fit Panel Thickness(Adjustable) : Max 8.5mm / 0.3"
- Size : 39 x 29 x 70mm/ 1.5" x 1.1" x 2.8"(L*W*H);Button Diameter : 40mm / 1.6";Material : Plastic and Metal
- Main Color : Red;Net Weight : 77g;Package Content : 1 x Push Button Switch
- Features: push to stop and lock, twist to reset, 2 screw terminals, 1 NC contact type, mushroom emergency stop push button switch. The switches are structured compactly and operated quickly and gently. Can be widely used to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.
Technical Specifications
