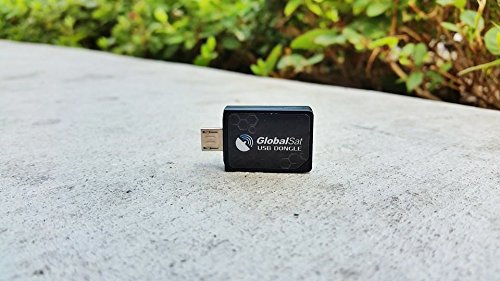

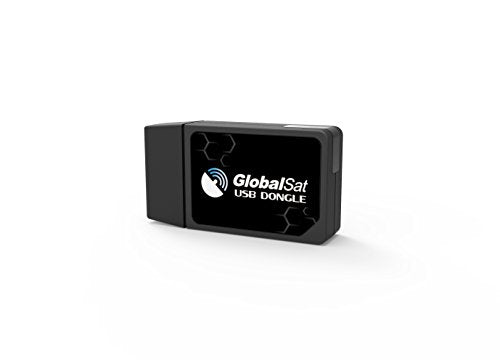

GlobalSat ND-105C Micro-USB GPS Receiver

Details: ND-105C features high GPS sensitivity, Micro USB interface, low power consumption and ultra small form factor. This product is powered by MTK GPS solution; it can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment. ND-105C supports up to 210 PRN channels. With 66 search channels and 22 simultaneous tracking channels, ND-105C acquires and tracks satellites in the shortest time even at indoor signal levels. Through ND-105C’s excellent low-power consumption characteristic, while using power sensitive devices, especially portable applications.ND-105C PCBA with a simple ID design is suitable for the following device accessory:● Smartphone (Android) ● Tablet (Android, Windows) ● Laptop (Windows, Mac OSX, Linux) ● Requires Android device to have "USB Host" support & "PL2303 GPSInfo" app on Android to function.Product Features● MediaTek high performance GPS Chipset ● Very high sensitivity (Chip Tracking Sensitivity: -165 dBm) ● Extremely fast TTFF (Time To First Fix) at low signal level ● Micro USB interface (includes Micro USB to USB Adapter cable) ● Built-in LNA ● Built-in GPS Antenna ● Built-in GPS status LED(Red) ● Built-in Back up Battery. ● Compact size (30.4 mm x 15.4 mm x 4.5 mm) suitable for portable application ● Very low power consumption ● Support NMEA0183 V4.0(GGA,GSA,GSV,RMC) ● Support SBAS (WASS, EGNOS, MSAS, GAGAN), QZSS ● Micro USB Supports Android, Linux, Windows (including 8.1 & 10) & Mac OSX operating systems        ● Includes a Micro USB to USB adapter cable for use with Windows & Mac OSX Laptops. For Android Setup instructions, please visit the USGlobalSat Forum here: http://usglobalsat.com/forum/index.php?topic=4790 or visit the ND-105C Support Page: http://usglobalsat.com/s-200-nd-105c-support.aspxUnfortunately, the ND-105C is not compatible with Windows RT, Windows 8.1 RT or iOS Devices like iPad, iPhone or iPod Touch.

Features:

• MediaTek high performance GPS Chipset Very high sensitivity (Chip Tracking Sensitivity: -165 dBm). Extremely fast TTFF (Time To First Fix) at low signal level. Micro USB interface.

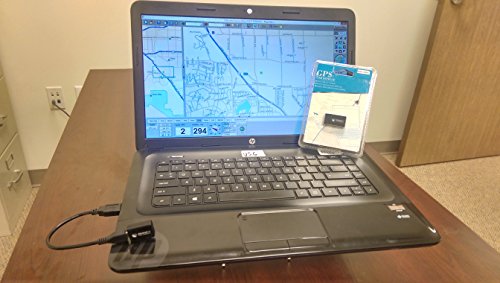

• Built-in LNA Built-in GPS Antenna Built-in GPS status LED(Red). Built-in Back up Battery. Includes a Micro USB to USB adapter cable for use with Windows & Mac OSX Laptops.
• Compact size (30.4 mm x 15.4 mm x 4.5 mm) suitable for portable application. Very low power consumption. Supports NMEA0183 V4.0(GGA,GSA,GSV,RMC). Supports SBAS (WASS, EGNOS, MSAS, GAGAN), QZSS.

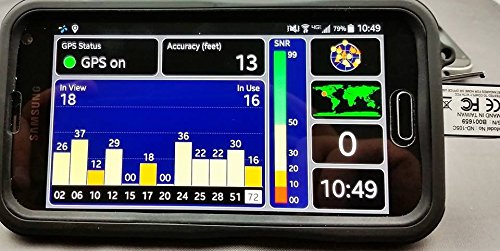

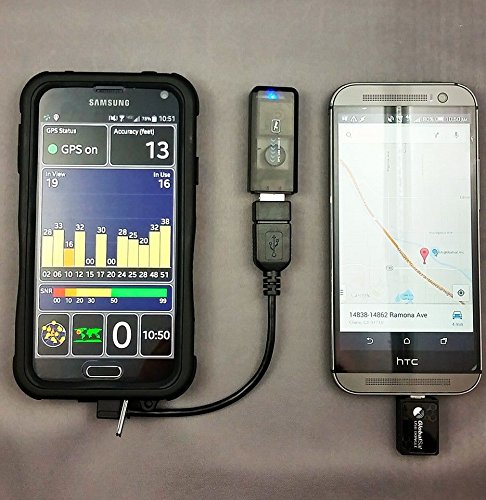

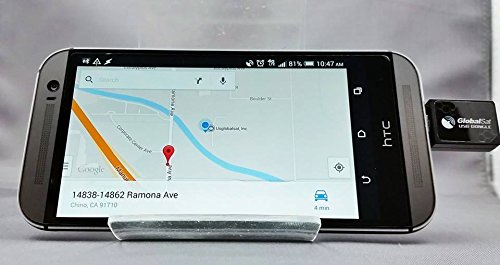

• Requires Android device to have "USB Host" support & "PL2303 GPSInfo" app for Android to function. Compatible with Operating Systems: Android 3.2 ~ 6.0+; Windows XP, Vista, 7, 8 & 10; Mac OSX 10.4 ~ 10.11+; Linux Kernel 2.4.31+.
• This is a NMEA GPS Receiver. Compatible with most NMEA compliant navigation software (not included). For use with Windows 10 Apps, it requires a 3rd party tool to convert to a "GPS Sensor". Please read item description for details.

Brand: GlobalSat

EAN: 6953005685496

Package Dimensions: 4.0 x 3.6 x 1.9 inches

Binding: Wireless Phone Accessory

Part Number: ND-105C

model number: ND-105C
