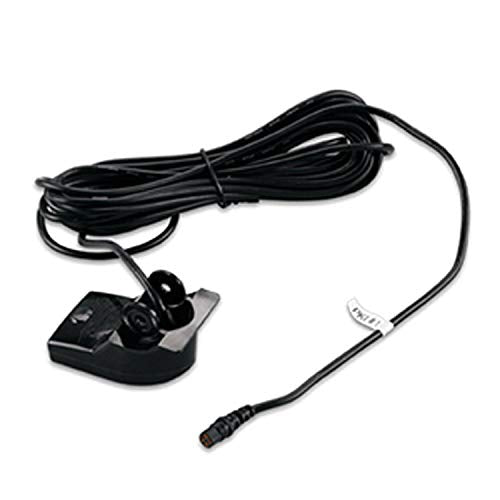

Garmin Transom and Trolling Motor Mount Dual Beam Transducer with Standard Packaging (4300-110-00)

Details: This dual beam transducer replaces the one included with your echo series fishfinder. A 500 W 4-pin transducer; an operating frequency of 77 to 200 kHz; a beam width of 45 to 15 degrees; and mounts on a 0 to 70 degree transom.

Features:

• This dual beam transducer replaces the one included with your echo series 500 W 4-pin transducer; an operating frequency of 77 to 200 kHz; a beam width of 45 to 15 degrees; and mounts on a 0 to 70 degree transom
• When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11614-00 is required
• When using with the echo MAP 50s/70s, transducer adapter cable part number 010-11948-00 is required
• Package weight: 1.0 lbs
• Compatible with echo, echoMAP CHIRP 42dv,43dv,44dv,45dv,/52dv,53dv,54dv, 55dv, Striker.

Brand: Garmin

Color: Black

EAN: 0617407543599

Package Dimensions: 8.0 x 7.0 x 2.2 inches

Binding: Wireless Phone Accessory

Part Number: 010-10249-20

model number: 010-10249-20
