Alpine PDR-V75 5-Channel 100W RMS Digital Amplifier (4x100W + 350W)

Details: There Is No Substitute for the Sound of PDR Welcome the new digital PDR-Power series of Class-D amplifiers. The PDR-Power amplifiers incorporate many of Alpine’s best in class digital technologies, high performance and signature sound. Overview Class-D Performance PDX Technology Inside Rotatable Illuminated Alpine Badge Top-Side Control Panel Voltage ON/OFF Sensing for OEM Upgrade Built-in Crossover & Bass EQ Remote Bass (RUX-KNOB) Compatible Sound Quality CEA-2006 Power Ratings CEA-2006 Power Rating: 75W RMS x 4 + 250W RMS x 1 (4-ohm, 14.4V at Less Than 1% THD+N) RMS Power Ratings Per channel into 4 Ohms: 75W RMS x 4 + 250W RMS x 1 (14.4V at Less Than 1% THD+N) Per channel into 2 Ohms: 100W RMS x 4 + 350W RMS x 1 (14.4V at Less Than 1% THD+N) Bridged 4 Ohms: 200W RMS x 2 (CH-1/2/3/4, 14.4V at Less Than 1% THD+N) Sound Tuning Crossover Frequency (CH1/2/3/4, HPF): 50 Hz - 400 Hz, -12 dB/oct. Crossover Frequency (Subwoofer, LPF): 50 Hz - 400 Hz, -24 dB/oct. Subsonic Filter (Subwoofer): 8 Hz -40 Hz, -24dB/oct. (Variable) BASS EQ (Subwoofer): 0 to +12 dB, fc=50Hz (Variable) Dimensions Foot Print (WxHxD) mm: 270 x 50.8 x 165 mm Foot Print (WxHxD) in: 10-3/4" x 2" x 6-1/2" General Power Requirements: 14.4 V.DC (11-16V allowable) Input Impedance: >10k ohms Frequency Response (+0, -3dB: 1W into 4 Ohms) for CH-1/2/3/4: 8 Hz - 45k Hz Frequency Response (+0, -3dB: 1W into 4 Ohms) for Subwoofer: 8 Hz - 400 Hz THD+N (10W into 4 Ohms) for CH-1/2/3/4: 0.02 % THD+N (10W into 4 Ohms) for Subwoofer: 0.02 % Damping Factor for CH-1/2/3/4: >500 Damping Factor for Subwoofer: >1000 Signal to Noise (Rated Power into 4 Ohms) for CH-1/2/3/4: 105 dB Signal to Noise (Rated Power into 4 Ohms) for Subwoofer: 110 dB Weight: 2.76 kg/6lb 1.4oz Input Sensitivity (RCA Input,CH-1/2/3/4): 0.2 - 4.0 V Input Sensitivity (RCA Input, Subwoofer): 0.1 - 4.0 V

Features:

• PDR Series 5-Channel Class D Car Amplifier | RMS Power Rating: 4 ohms: 75 watts x 4 chan. + 250 watts x 1 chan. | 2 ohms: 100 watts x 4 chan. + 350 watts x 1 chan. Bridged | 4 ohms: 200 watts x 2 chan. + 350 watts. x 1 chan. | CEA-2006 compliant
• Variable high-pass filter (50-400 Hz, 12 dB/octave) on 4-channel section | Variable low-pass filter (50-400 Hz, 24 dB/octave) on sub channel | Variable subsonic filter (8-40 Hz, 24 dB/oct) on sub channel | Variable bass boost (0-12 dB at 50 Hz) on sub channel

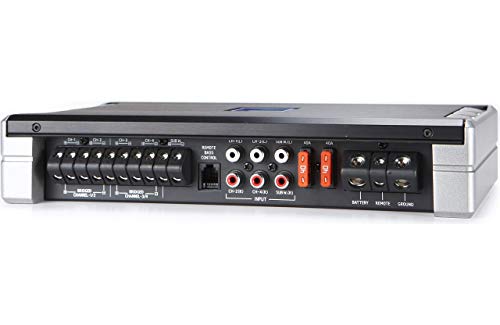

• Preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input) | Class-D amplifier design | MOSFET power and output stages | Fuse rating: 40A x 2 | Dimensions: 10-3/4"W x 2"H x 6-1/2"D
• All PDR-Power amplifiers are individually tested and have certified power ratings. Each amp comes with their very own verification certificate documenting its actual power output exceeds the rating by a wide margin

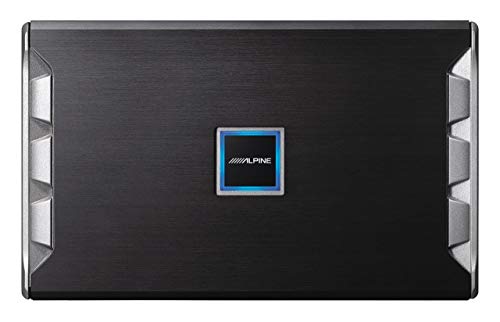

• PDR-Power amplifiers come with a rotatable illuminated badge that makes a very attractive presentation when mounted vertical or horizontally

Brand: ALPINE

Color: Black

EAN: 0793276012999

Package Dimensions: 13.1 x 8.8 x 4.6 inches

Binding: Wireless Phone Accessory

Part Number: FBA_PDR-V75

model number: FBA_PDR-V75
