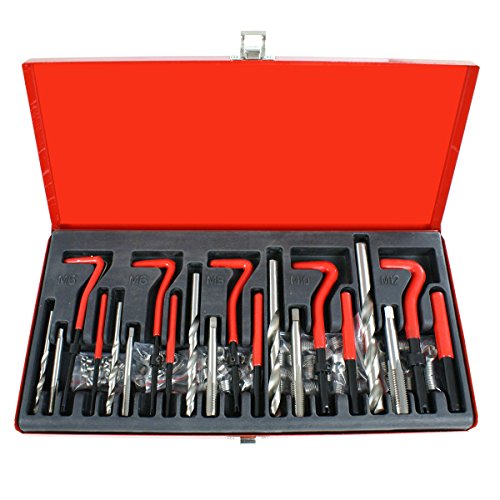

ZENY 131pc Professional Helicoil Thread Repair Re-Thread Kit Restoring Damaged Threads M5-M12

131PC HELICOIL THREAD/RETHREAD REPAIR KIT/SET M5 M6 M8 M10 M12 METRIC New HD Pro




This Item Features:




-Manufactured from chrome vanadium steel for strength and durability.


-Ideal for restoring damaged threads in steel, cast, iron and aluminum.


-Suitable for engine repair and other automotive applications.


-Simple and easy to use :


1- Drilling - clear the damaged threads with a standard drill. (to repair a spark plug thread no pre-drilling is necessary if using the special spark plug tap), please pay attention that for flute less taps bigger holes are required.


2- Check - check that the thread and pitch of the tap and the bolt match


3- Tapping - use the special taps for cutting the holding thread into the cleared hole (recommended to use a suitable cutting oil)


4- Install the insert - place insert on installation tool and position the adjustable ring so that the insert tang is centered in the tang slot. Wind the insert in with a light downward pressure until a half turn below the surface. Don't work against the thread direction as the tang could break


5.- Tang removal - After finishing lift the installation tool and use the tang break tool to remove the tang. For bigger sizes and spark plug taps use long nose pliers to remove the tang. Due to the narrow and exact tolerances the new thread normally is stronger than the original ones.




This Item Including:




-5 x installation tools


-5 x break pin tools


-5 x twist drills


-1 x hex key


-5 x taps




110pc wire thread inserts:




-M5 x 0.8 x 6.7mm


-M6 x 1.0 x 8.0mm


-M8 x 1.25 x 10.8mm


-M10 x 1.5 x 13.5mm


-M12 x 1.75 x 16.3mm


-Comes in a metal tin for easy storage and transportation


-Professional tool for commercial or occasional use.
