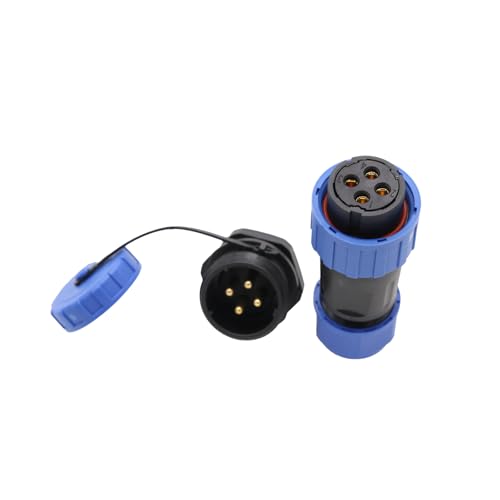

ZBLZGP Waterproof TY20 4 Pin LED Wire Connector Screw Tightening Terminals No Soldering Easily Installation Back Nut Reverse Mount Connector for Submersible & Underwater Equipment

ZBLZGP Waterproof TY20 4 Pin LED Wire Connector Screw Tightening Terminals No Soldering Easily Installation Back Nut Reverse Mount Connector for Submersible & Underwater Equipment

• TY20 2 Pin Waterproof No Welding Connector Screw Crimping Male Female Socket Plug Electric Cable Connector.Applicable wire outer diameter range: 6.0~11.5mm.
• Rated Current / Voltage:25A/ 380V;Withstand Voltage : AC 1500V;Contact Diameter:Φ2.8mm*2;Contact resistance:1mΩ;Insulation resistance:2000mΩ;Wire Gauge:4mm²/12AWG.
• Shell material: thermoplastic PA66;Insulator: Thermoplastic PPS High Temperature Resistant 200℃;Contact material: Brass with gold plating;Sealing ring: silica gel;Connection: Thread connection.
• Link Mode:Solderless screw connection;Temperature Range:-25℃-85℃;Plugging times: more than 500 times.Threaded wiring for greater convenience, efficiency and repeated use.
• TY series connectors: Docking direct use, no need to fix the installation; Rear nut need to open the hole, nut fixed installation; Flange and Square need to open the mounting and screw holes, fixed installation with screws. Using high quality solid copper, strong conductivity, corrosion and oxidation resistance.
