Xtenzi Wire Harness Radio for Pioneer Ref # CDE7193 CDE7336 CDE9141 CDE8215 CDE7790 CDE7609 CDE7792 CDE7486 CDE7487

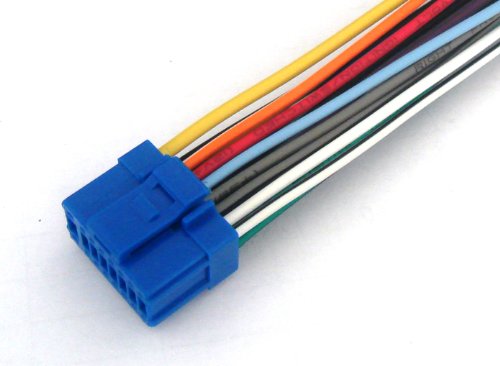

Xtenzi Wire Harness Radio for Pioneer Ref # CDE7193 CDE7336 CDE9141 CDE8215 CDE7790 CDE7609 CDE7792 CDE7486 CDE7487 We proudly present aftermarket replacement part for Pioneer blue 16-pin wire harness power plug. It will fit to following models..... PIONEER, PREMIER, AVH-P7500DVD, AVH-P7600DVD, AVH-P5900DVD, AVH-P5100DVD, AVH-P5000DVD, AVH-P4900DVD, AVH-P5700DVD, AVH-P6000DVD, AVH-P6600DVD, AVH-P6800DVD, AVIC-N1, AVIC-N2, ANIC-N3, AVIC-N4, AVIC-N5, NAV-SYP10DVD, AVIC-X1, AVIC-X1R, AVIC-X1BT, AVIC-X3, AVH-P6500DVD, AVH-P7800DVD, AVH-P6550DVD, AND MORE THIS PLUG RETAILS FOR $89.95. This plug wire harness has a few part numbers associated in pioneer catalogue like CDE3795, CDP1013, CDE7790, CDE8215, CDE7609, CDO1058, CDE7792, CDE7486,CDE7487 WIRE ASSEMBLY. For more info contact us, we carry all kind of harness and plugs. ----------------------------------------- Color Coding Wiring Diagram Yellow = Consent Power Orange = Illumination / Dimmer Red = Switched / Ignition Power Light Blue =Parking Break Grey= + Speaker Grey W Black= - Speaker White =+ Speaker White W Black= - Speaker Green W Black= - Speaker Green= + Speaker Purple W Black= - Speaker Little Black= + Back Up Camera Trigger Blue W White= Power Antenna Amp Turn On Yellow W Black= Mute Big Black= Ground ----------------
