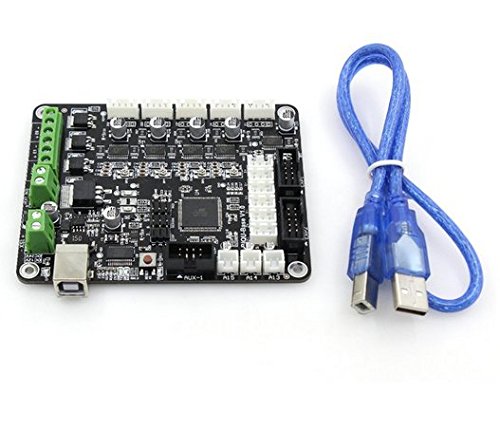

Witbot BASE V1.0 Plate Controller Board for 3D Printer Ramps 1.4 Hight Quality

Specification:
A collection of all the functions on a single board to solve the complicated interfaces Ramps1.4 combination, problem-prone fault
Control panel and can be connected directly Ramps1.4, 2004LCD 12864LCD control panel
Using high-quality MOSFET tube heat better
MKS-BASE is to create customer base for R & D personnel Ramps1.4, Mega tronics V2.0 and other open source motherboard problems especially developed to optimize the launch of a product, particularly suitable for mass production 3D printer manufacturer use as the main control board
Give full consideration to the stability, heat dissipation, ease of use issues through continuous printing reliability testing
Supporting line can refer to: 2PIN, 3PIN, 4PIN
Power input: 12V-24V
Net Weight: 80g
Dimensions: 110*90mm

Package Content:
1* BASE V1.0 Controller Board
1* USB Cable

Note:
※Do not plug in case of power motor drive easily lead to burn; do not adjust the current in the motor is running. The correct approach is to first disconnect the power, unplug the motor, and then re-power, adjust potentiometer, measure the voltage on the potentiometer until the measured voltage is the same as expected
※Before powering up again confirm whether the positive and negative reversed, if the user is due to reverse power and burn, and we do not guarantee such problems
※Could be directly connected 2004LCD or 12864LCD (remove the L-shaped adapter plate), due to the open-source design 12864LCD 2004LCD and only standardized EXP1 and EXP2 the PIN port on the horns insertion direction and there is no specific standard, so some non maker base production and 2004LCD 12864LCD may be inconsistent data line card port direction, in turn, need to plug to use
