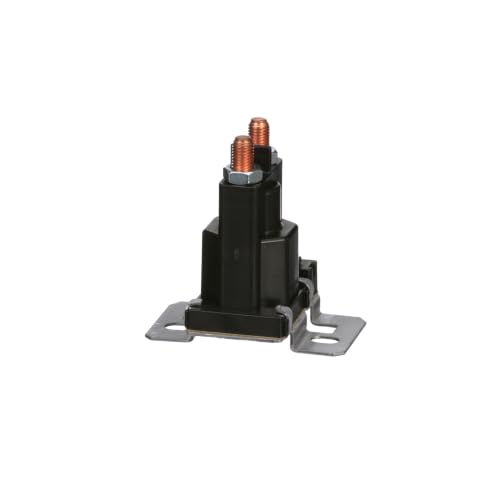

White-Rodgers 120-105711 DC Power Solenoid Contactor, 12V, 4-Terminal
Product Description
White-Rodgers 120-105711 DC Power Solenoid Contactor, 12V, 4-Terminal
- Water & Dust Resistant case
- Contact rating inrush 400 Amps
- Contact rating continuous 100 Amps
- Continuous Duty
- Temperature range: -20 degrees to +120 degrees F
- Isolated or grounded to case coils
- SPNO Contacts
- Horizontal or vertical mounting bracket
The White-Rodgers 120-105711 12V DC Solenoid features SPNO terminal, and continuous duty cycling with contact rating of 100 Amps and an inrush of 400 Amps. Temperature range: -20 degrees to +120 degrees F. Water resistant and dust resistant. Coil resistance 16 ohms.
Technical Specifications
