Waveshare Open3S500E Standard, XILINX Development Board

Overview
Open3S500E is an FPGA development board that consists of the mother board DVK600 and the FPGA core board Core3S500E.
Open3S500E supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with XILINX Spartan-3E series FPGA devices.

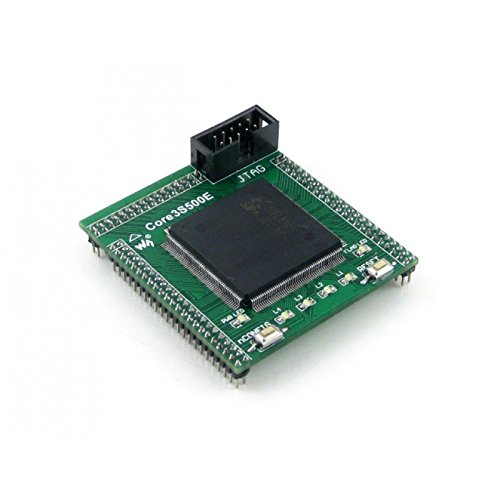

What's on the Core3S500E
XC3S500E:the XILINX Spartan-3E FPGA device which features:
Operating Frequency: 50MHz
Operating Voltage: 1.15V~3.3V
Package: QFP208
I/Os: 116
LEs: 500K
RAM: 360kb
DCMs: 4
Debugging/Programming: supports JTAG
AMS1117-3.3, 3.3V voltage regulator
AMS1117-2.5, 2.5V voltage regulator
AMS1117-1.2, 1.2V voltage regulator
XCF04S, onboard serial FLASH memory, for storing code
Power indicator
LEDs
FPGA initialization indicator
Reset button
nCONFIG button: for re-configuring the FPGA chip, the equivalent of power reseting
50M active crystal oscillator
JTAG interface: for debugging/programming
FPGA pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion
Shipping List
Open3S500E development board x 1
4-pin wire x 2
2-pin wire x 2
USB power cable x 1
User guide CD x 1
