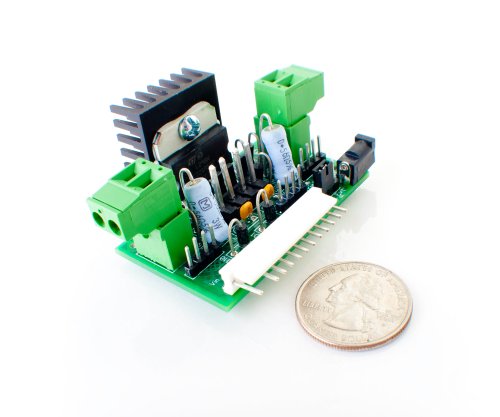

Virtuabotix Fully Assembled Versalino MotorMaster - 2 Amp DC/Stepper Motor Driver (Made in the USA)

Description:

The Versalino MotorMaster has been a long time in the making, but we promise it was worth the wait!
This handy little board is cram packed with every feature we could possibly fit on a 55 mm x 35 mm platform, and is the first of many VersalinoTM Compatible Load-boards to come.




At it's core is the tried and true L298N H-Bridge chip configured for Stepper Motor operation right out of the box!
Motors can be driven via the stepper port in the middle, or with the included wire screw ports.



This board can be used with a VersalinoTM Uno by just plugging it in, or connected to any other Micro-controller (with at least 6 digital IO's available).



One of the features you won't find anywhere else are the three built in End-stop ports that can be used for your own custom control/stops, which makes this device paired with a VersalinoTM Uno perfect for putting together your own CNC machine.



Buy with confidence, this device is manufactured and shipped from the USA and is covered by a 90 Day 100% satisfaction guarantee, and a limited 1 year warranty on parts and labor (The board must not have been damaged by drawing too much current to be eligible).

We stand by our quality so that you can stand by yours, and don't forget that we are always available to help you through any issues you have with any of our products.



Technical Specifications:

H-Bridge Driver: L298N H-Bridge

Voltage: 0 to 16 VDC

Current Limit: 2 Amp (SMD Fused)

Pins: 13 Pin VersalinoTM Port (9 IO Pins)

Drives: 2 DC or 1 3 to 4 wire Stepper motor

3X Mechanical Endstop/Misc Ports



Package Contents:

Fully Assembled Versalino MotorMaster

Pin-out and Instruction Pamphlet




Arduino/Versalino Library Available!
