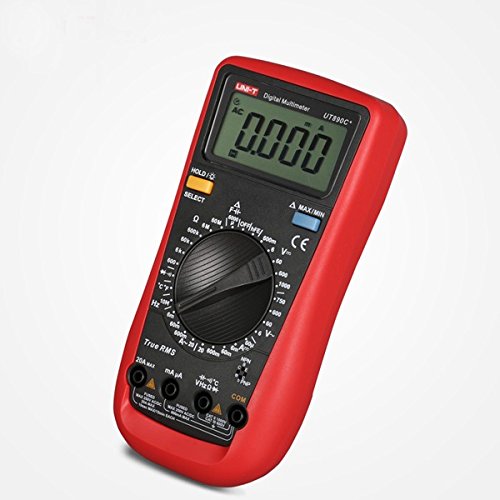

UT890C+ Digital True RMS Multimeter Multimetro Tester With Test Lead Cable

Description: UT890C+ Digital True RMS Multimeter Multimetro Tester With Test Lead Cable Features: Overload protection up to 600V. Data hold and True RMS function. Low battery indicating protection. High accuracy and resolution up to 6,000 counts. Add to unique MAX-MIN value calculate function. Specification: Basic functions Range Basic accuracy Model UT890C + UT890D DC voltage V 600.0mV (0.5% + 4) (0.5% + 4) 6.000V / 60.00V / 600.0V (0.5% + 2) (0.5% + 2) 1000V (0.7% + 10) (0.7% + 10) AC voltage V 6.000V / 60.00V / 600.0V (0.8% + 3) (0.8% + 3) 750V (1.0% + 10) (1.0% + 10) AC current A 6.000mA / 60.00mA (1.0% + 12) (1.0% + 12) 600.0mA (2.0% + 3) (2.0% + 3) 20.00A (3.0% + 5) (3.0% + 5) A direct current 60.00A / 6.000mA / 60.00mA (0.8% + 8) (0.8% + 8) 600.0mA (1.2% + 5) (1.2% + 5) 20.00A (2.0% + 5) (2.0% + 5) Resistance 600.0 (0.8% + 5) (0.8% + 5) 6.000k / 60.00k / 600.0k / 6.000M (0.8% + 3) (0.8% + 3) 60.00M (1.0% + 25) (1.0% + 25) Temperature â"ƒ -400 â"ƒ ~ 1000 â"ƒ (1.0% + 3) Temperature â"‰ -40 â"‰ ~ 1832 â"‰ (1.5% + 5) Capacitance F 6.000nF (5.0% + 35) (5.0% + 35) 60.00nF ~ 600.0F (2.5% + 20) (2.5% + 20) 6000F (5.0% + 10) (5.0% + 10) Frequency Hz 9.999Hz ~ 9.999MHz (0.1% + 5) (0.1% + 5) Measuring range: 10Hz ~ 10MHz (auto range), 100kHz:100mVrms input amplitude 30Vrms, > 100kHz ~ 1MHz:200mVrms input amplitude 30Vrms, > 1MHz:600mVrms input amplitude 30Vrms Special features Max / Min True RMS measurement TRMS Frequency response Applicable sine wave and triangular wave, 200Hz other waveforms for reference 40Hz ~ 1kHz Diode test Continuity Buzzer hFE REL Data Hold LCD backlight Battery voltage tips Automatic shutdown About 15 minutes Input impedance 10M General Characteristics Environment 18 C ~ 28 C (64 F ~ 82 F); relative humidity: 75% Battery 9V battery (6F22)(Not included) LCD
