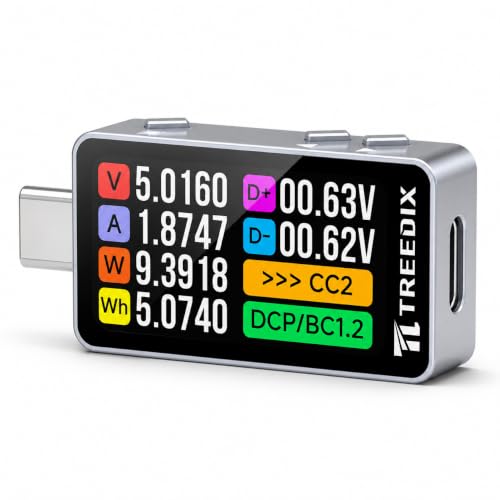

Treedix USB-C Tester Power Meter, 4-32V 0-6A USB Tester, PD3.1, E-Marker

Treedix USB-C Tester Power Meter, 4-32V 0-6A USB Tester, PD3.1, E-Marker

• 【High-Accuracy USB-C Power Meter】 This USB-C tester offers measurement accuracy of up to ±1% and supports voltage measurements from 4V-32V and current measurements from 0-6.0A(10A Max). Equipped with a 1.47-inch IPS HD color display, it clearly shows voltage, current, power, capacity, energy, operating time, maximum voltage, maximum current, maximum power, and current direction.
• 【Multiple Fast-Charging Protocol Tests】 This USB power meter supports PD2.0, PD3.0, PD3.1 Fixed, AVS, EPR, QC2.0/3.0, FCP, and AFC protocol detection. It helps identify the charging protocols and output capabilities supported by a charger, making it easier to determine whether the charger can provide the fast-charging function required by your device.
• 【E-Marker Cable Testing】 This tester can read E-Marker information from compatible USB-C cables and display the PD version, USB data rate, TBT and EPR support, active or passive cable type, rated voltage and current, cable length, hardware and firmware versions, SVID, ID Header, Cert Stat, Product, and Cable information. It helps you identify the specifications and capabilities of different USB-C cables.
• 【Dynamic Curve Display and Power-Off Data Storage】supports dynamic curve plotting with adjustable sampling intervals in seconds, minutes, or hours, allowing you to monitor and record real-time voltage and current changes. The curve display time can be adjusted using the buttons.It‘s perfect for measuring power bank capacity and accumulated energy over time.
• 【Wide Compatibility】 Suitable for testing USB chargers, PCs, laptops, desktop computers, smartphones, tablets, power banks, and USB cables. Whether you are checking charger output, identifying fast-charging protocols, distinguishing between USB-C cables, or measuring power bank capacity, this tester provides clear and practical measurement data.
