Teyleten Robot 6S 2.7V/16V LTO Balance Board Equalization Circuit Lithium Titanate Battery/Super Farad Capacitor Protection Board Module 3pcs

Product ID: B0FMS5C9QY Condition: New

$ 90

includes Duties & VAT

Delivery: 10-20 working days

Ships from USA warehouse.

Secure Transaction

VISA Mastercard ozow

Product Description

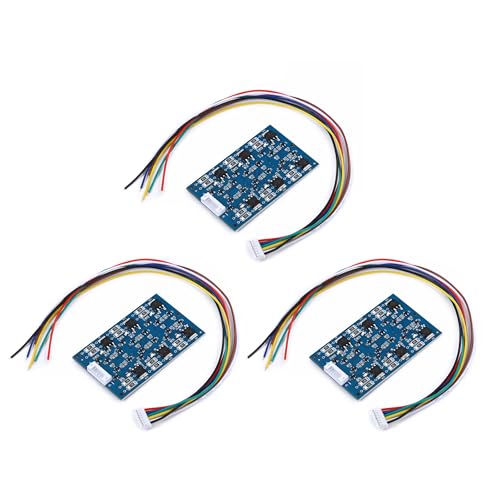

Teyleten Robot 6S 2.7V/16V LTO Balance Board Equalization Circuit Lithium Titanate Battery/Super Farad Capacitor Protection Board Module 3pcs

The working principle of the circuit is that when a single cell/capacitor voltage is higher than the equalization voltage, the circuit internally discharges the battery/capacitor by turning on the triode, and the excess power is dissipated by the power resistor. Circuit equalization voltage accuracy is plus or minus 1%.
Connect from the negative pole of the battery pack. The first line labeled "-" on the protection board is connected to the negative pole of the first battery, and the second line is connected to the second battery of the first battery compartment. On the chip, in turn, it is connected to the positive pole of the entire battery pack.
