Tarot 5.8G 600MW Telemetry TX/RX Combo for FPV Image Transmission TL300N
Product Description
Tarot 5.8G 600MW Telemetry TX/RX Combo for FPV Image Transmission TL300N
- The Tarot 5.8G 600mw video TX/RX combo has 32 channels. It is quite suitable for the small size mutlicotper.
- 32 channels is compatible with the regular frequency.
- It provides one line for video signal, two line for audio signal for long distance transmission.
- It provides 5V 1 amp output (this could power the camera, image overlay and etc which requires 5V power).
- The weight of the TX is only 8.3g (without antenna).
TX Specifications :
Weight: 8.3G (without antenna)
Working Frequency: 5645-5945MHz
Channel: 4 bands / 32 channel
Channel Choice: 5-DIP switch
Output Power: 27.5 dbm (600mw)
Input Voltage: DC 7-26V (2-6S)
Output Voltage: 5V 1A
Antenna Adaptor: SMA 50Ω
Working Temperature: -10 ~ 60 degrees
Frequency: FM
RX Specifications:
Weight: 10.9 G (without antenna)
Dimension: 28 x 46 x 40 mm
Working frequency: 5645-5945 MHZ
Channel: 4 bands / 32 channels
Channel Choice: 5-DIP switch
Receiving Sensitivity: -85 dbm
Input Voltage: DC 7-26V (2-6S)
Antenna Adaptor: SMA 50Ω
Working Temperature: -10 ~ 60 degrees
Frequency: FM/PLL
AV output: 2.5mm 4 pins AV output
Power input: 3.5mm (exterior) 1.3 mm (interior) DC
Note:
1. Install the antenna before connecting the power to avoid further damage.
2. Choose proper working frequency and tune the receiver to the same frequency. Please refer to the channel list.
3. Do not touch the surface of transmitter while operating. It is normal the surface is getting hot.
4. The input voltage range is between 7-26V (2-6S), do not overload the working voltage.
5. The output voltage is 5V1A. Please confirm the current and voltage of the camera

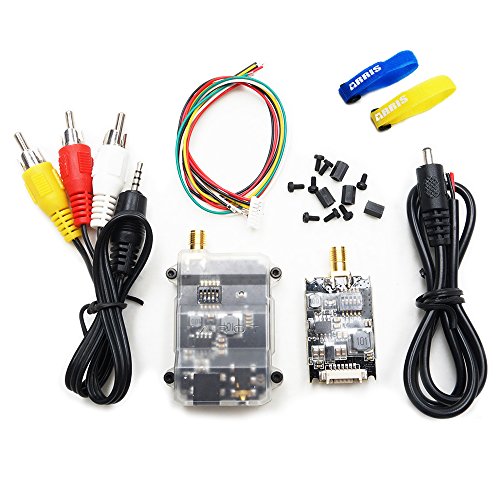

Package Includes:
1 x TX5832-600M Audio Video TransmitterÂ
1 x RX5832 AV ReceiverÂ
1 x 7P Color PinÂ
1 x 3.5MM Power CableÂ
1 x 2.5MM AV CableÂ
2 x ARRIS Battery Straps
