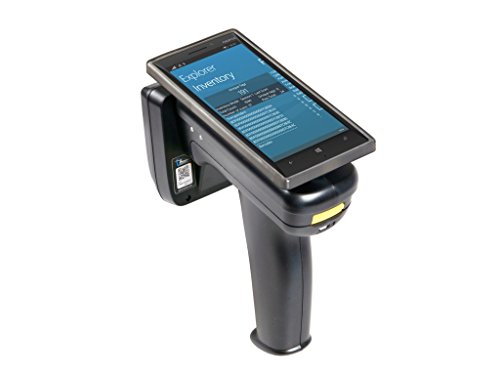

TSL 1128 Bluetooth UHF RFID Reader (902-928 MHz)
Product Description
TSL 1128 Bluetooth UHF RFID Reader (902-928 MHz)
- Simple pre-configured ASCII 2.0 commands.
- Max Read Distance: Up to 7 m (23 feet).
- Uses your mobile device to read UHF RFID Tags.
- IP 54 rated.
- Dimensions: 6.2 x 3.0 x 6.6 in (160 x 77 x 169 mm).
The TSL 1128 Bluetooth® UHF RFID Reader is designed to read and write to EPC Class 1 Gen 2 (ISO18000-6C) UHF transponders and communicate with a variety of host devices via Bluetooth® wireless technology. With its Impinj R2000 core and range of interchangeable high performance antennas, the 1128 performs like no other reader, giving the user the highest levels of performance and flexibility currently available in the market today. What's Included? 1128 Bluetooth UHF RFID Reader Unit, Micro USB Cable, and USB Charger. SPECIFICATIONS ELECTRICAL: Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) Operating Frequency: US 902-928 MHz Antenna Type: Circular polarized Max Read Distance: Up to 4m (13 feet) Scanner: 2D Imager (Optional) Operating System: iOS, Windows Mobile, Windows Phone 8, WinCE, WIndows XP, 7, 8, Android Data Interface: USB, Bluetooth Memory/Expansion Memory: Up to 32 GB Micro SD/SDHD card Power Source: Removable, rechargeable 4.2 volt lithium polymer 2200 mAh battery Camera: N/A MECHANICAL: Dimensions: 6.2 x 3.0 x 6.6 in (160 x 77 x 169 mm) Weight: 0.83 lbs (380 g) ENVIRONMENT: IP Rating: IP 54 Operating Temperature: -20° to +60°C APPLICATION INTERFACE: Host API: ASCII Demo Software: SmartWedge
Technical Specifications
