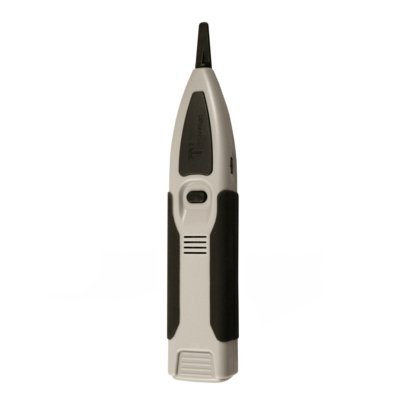

T3 Innovation TP200 TrakAll Tone Generator and Probe

T3 Innovation TP200 TrakAll Tone Generator and Probe is a handheld tone generator to trace voice, data, and video cables. The T3 Innovation TP200 features two selectable tones as well as a detachable generator to identify cables over distance.

Physical Dimensions: -Size: 16.3 x 7.1 x 3.6 cm (9.2 x 1.6 x 1.25 inches)

-Weight: 140 grams (5.0 oz.) Tracer and Generator with batteries

Externally Applied Voltage Without Damage: 250 V DC or 175 V RMS AC

Tone Voltage: 12 volts peak-to-peak no load, new battery

Tone Power: 8.9 dbm into 600 ohms, new battery

Tone Frequencies: 1116Hz and 919Hz ± 5%

Power: -Four IEC 1.5 volt alkaline batteries (Energizer A76, Duracell LR44)

-Tracer Active Battery Life: 10 hours

-Generator Active Battery Life: 50 hours

Operating Environment: -Operating temperature: 0 to 50 °C (32 to 122 °F)

-Storage temperature: -20 to 60 °C (-4 to 140 °F)

-Humidity: 10% to 90%, non-condensing

-Altitude: 3,050 meters (10,000 ft) maximum

Compliance: CE, Complies with Conformité Européenne directives
