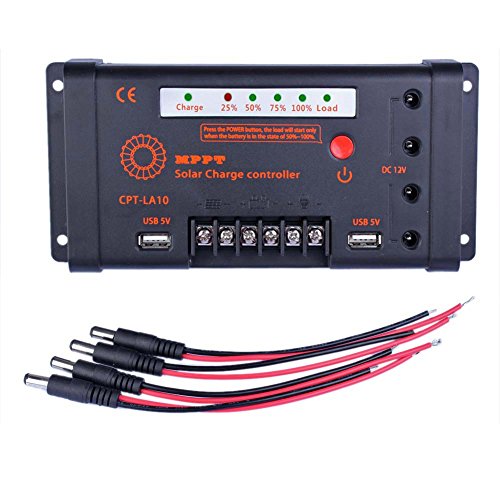

Sun YOBA 10A 12V/24V Solar Panel Regulator Charge Controller 100V Input & DC USB
Product Description
Sun YOBA 10A 12V/24V Solar Panel Regulator Charge Controller 100V Input & DC USB
- Use single-chip microcomputer as the core of the whole control system, which makes the controller has the advantages of intelligent, strong adaptability, reliable function etc.
- Use SMT chip production technology, industrial class chip, advanced technology, quality assurance
- Use industrial grade chip, it can work properly under environment such as cold, high temperature, humid.
- Use MPPT version optimized design scheme, which can improve system efficiency and prolong the life span the battery
- Compatible design, CPT series controller can choose the lead-acid battery or the lithium battery version.
The MPPT Controller adjust the battery charging current and voltage, which makes the output voltage of the solar panel always near the maximum power output point, so as to ensure that the system can obtain the maximum output power from solar cells. On the one hand, it can greatly improve the utilization efficiency of solar panels, on the other hand, it can effectively protect the battery.
Protection:
1. PV Reverse Polarity Protection
2. Battery Reverse Polarity Protection
3. Battery Over Charge Protection
4. Battery Over Discharge Protection
5. Output Over Current and Short Circuit Protection
Specification:
Model:CPT-LA10
Type of battery: lead-acid battery
Max. charge current: 10A
Max. discharge current: 20A
Rated voltage: 12V/24V auto work
Max. charge voltage: 14.7V/29.4V
Cut-off discharge voltage : 10.5V/21.0V
Over discharge recovery voltage: 12V/24V
DC output: Quadruple DC 12V output, total load capacity is 6A,with over current protection
USB output: Dual USB 5V output, total load capacity is 3A,with over current protection
Package Includes:
1x Solar charge controller
4x DC 12V Cable
1x English instruction manual
Technical Specifications
