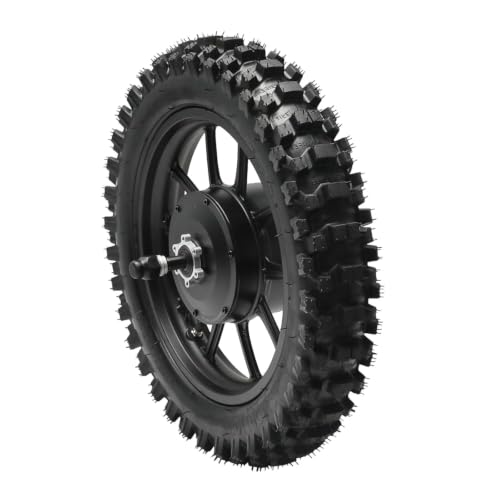

Scooter Hub Motor, 12 Inch Rear Wheel Hub Motor 48V 1000W & 80/100-12 Tire Rim Wheel Assembly Off-Road Disc Brake for Wheelchair Scooter Dirt Pit Bibe Gearless Brushless
Product Description
Scooter Hub Motor, 12 Inch Rear Wheel Hub Motor 48V 1000W & 80/100-12 Tire Rim Wheel Assembly Off-Road Disc Brake for Wheelchair Scooter Dirt Pit Bibe Gearless Brushless
- 48V 1000W Rear Hub Motor – Features a 48V 1000W rear-drive motor with 55–60N·m rated torque and approximately 655 RPM speed for compatible off-road and trail vehicle applications
- 1:5 Gear Reduction & Rear-Wheel Drive – Built with a 1:5 gear reduction configuration for compatible rear-wheel-drive setups, providing a geared drivetrain solution for custom vehicle projects
- 28A Rated & 42A Max Current – Uses a 10-pole magnet steel motor design with a 120° Hall sensor, 28A rated current, and 42A maximum current for compatible 48V drive systems
- 12-Inch Rear Wheel Assembly – Includes an 80/100-12 off-road tire and approximately 175mm (6.89") axle configuration, with disc brake compatibility for matching rear wheel and brake setups
- Complete Rear Drive Component – Includes the motorized rear wheel assembly and plug-in wiring for compatible applications; motor wiring must be connected on the left side
Technical Specifications
