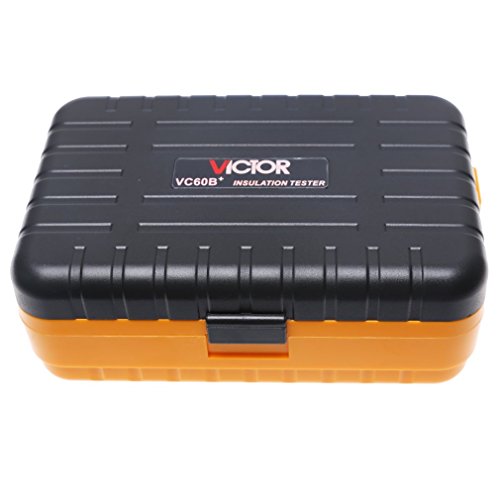

Samyo VC60B+ Digital Insulation Resistance Tester Megohmmeter MegOhm DCV ACV Meter

This digital insulation tester is an ideal instrument that can be used in testing insulation of electric machines, cables, electronic equipments, electric facilities, etc. Its main features include: easy to operate, wide test range, highly stable performance, backlit LCD display, data hold and auto power off. Using a shoulder strap, it can be used by both hands.

Insulation resistance text range:
0~200MΩ (250V10% test voltage, Resolution: 100kΩ, Basic accuracy: (4.0%+2))
0~200MΩ (500V10% test voltage, Resolution: 100kΩ, Basic accuracy: (4.0%+2))
0~2GΩ (1000V10% test voltage, Resolution: 1MΩ, Basic accuracy: (4.0%+2))
Resistance text range: 0~2kΩ (Basic accuracy: (1.0%+5), Resolution: 1Ω)
DCV text range: 0~1000V (Basic accuracy: (1.0%+5), Resolution: 1V)
ACV text range: 0~750V (Basic accuracy: (1.5%+5), Resolution: 1V)

Special function:
Continuity alarm: Less than 50Ω10Ω
Data hold: Yes
LCD backlight: Approx 10Sec.
Function protection: Yes
Low Battery Indication: Yes
Input impedance: 10MΩ
Sampling rate: 3 times/Sec.
AC frequency response: 40-400Hz
Operation mode: Manual range
Max.display: 1999
LCD size: 75 x 52mm
Operating Temperature: -15℃~55℃
Relative Humidity: Less than 75%RH
Power source: 9V, 6 x 1.5V AA battery(Included)

Package Content:
1 x Digital Insulation Tester
2 x Test lead
2 x Test Alligator clips
1 x Shoulder strap
6 x 1.5v batteries (Note:Sometimes we put the batteries in the battery compartment directly, please reposition the batteries correctly before you use.)
1 x User Manual
