SUPER PC iVu9s | Stand Alone Multi-Monitor Video Wall Controller | Supports 4, 6 and 9 Monitor/Display Configurations
Product Description
SUPER PC iVu9s | Stand Alone Multi-Monitor Video Wall Controller | Supports 4, 6 and 9 Monitor/Display Configurations
- The Most Professional and Affordable Large True Video Wall Solution on the Market! Super fast service! Units are In stock and on hand! Unit will arrive in 1-2 business day after purchase, if ordered before 3PM ET. We will provide you with a tracking number same day, if ordered by cutoff time.

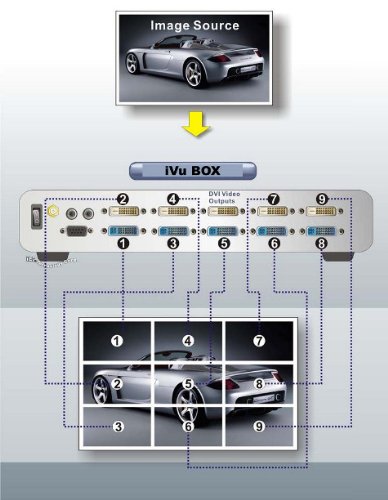

- Up to 1920x1200 output per display. Full mode (3x3, 2x3, 3x2): The iVu9 unit divides the input image into nine or six sections and splits the input resolution to fit the selected resolution on each monitor. The full display also support mask enable and disable. Easy to install and control the videowall or multi-screens, either from a PC, Laptop or remote control. On Screen Display/Remote control functions for selecting; Display mode; Output resolution; Border mask enable/disable and frame wideness adjustment.
- Bezel mask or screen border adjustment, this is quite an important function, normally the display will be 'staggered" from screen to screen due to the use of conventional LCD/Plasma displays, but with this function you can adjust the display to be seamless, e.g mask-out the screen bezel enabling a visually seamless display.
- Multiple units can be used for larger screen configurations. Example: by installing a dual channel graphics card into a PC then two iVu4's can be connected to enable a 6x3 video wall or multi-screen display or one iVu9pro can be cascaded to four further units to enable a 16x16 videowall / multiscreens. All iVu controllers can be "mixed & Matched" to enable various display configurations.
- Optional Live DVI/VGA video insertion, the XtremeRGB (optional purchase) can be installed within the PC that controls the iVu9, this will enable not only a videowall/multi-screen display with all of Windows applications, but also live video from other sources that provide DVI or VGA outputs, such as Servers, Workstations, Hdmi players, DVI cameras etc.
HD 1920 x 1200 Video wall controller with image auto scaling (3 x 3 Video Wall Controller) - Ideal for Medical Image Review, Satellite Imagery and Signage Display Solutions. This ultra-high definition resolution video controller enables 1 x high resolution input up to 1920x1200 DVI-D or (HDMI via adapter or cable) and outputs 9 x DVI-D outputs scalable up to 1920x1200 per screen. The multiple output design enables large-screen display solutions through only one video controller, providing a cost-effective solution. The OSD keypad located at the front enables an easy-control interface while all the video outputs and power located at the rear brings the advantage of convenient cabling. The iVu9s video controller is designed to drive LCD, DLP screens, video wall cubes and projectors, making it perfect for all kinds of applications. A video wall is a group of smaller displays tiled together in a matrix to create one large display.
Supports various display modes: (3 x 3, 3 x 2, 2 x 3, and 2 x 2) and Clone Mode.
Supports up to 1920 x 1200 pixel input and outputs. Compatible with most types of Displays! The iVu9s video wall controllers can be connected to almost any monitor that supports DVI input
(or HDMI using a DVI to HDMI adapter). Monitors can be chosen according to budget and need.
The features of the iVu9s professional video wall controller include:
- Fan-less design for any implementation
- iVu9pro can operate in 6 (3x2), 6 (3x2) or 9 (3x3) screen mode
- Provide 1 image source input up to 4080x2304 DVI Dual-Link and 9 DVI-D outputs to nine (3x3) monitors
- Display mode choice(2x3, 3x2, 3x3)
- Software OSD control
- IR Remote Controller
- Enhanced display connection advantage
