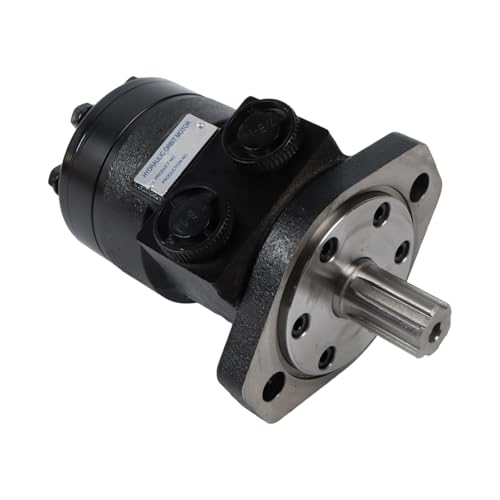

SINOCMP 101-1083-009 Hydraulic Motor Replacement for Char-Lynn H Series, 2-Bolt SAE-A Mount SAE 6B Splined Shaft SAE O-Ring Ports, Low Speed High Torque for Construction Agricultural Machinery

SINOCMP 101-1083-009 Hydraulic Motor Replacement for Char-Lynn H Series, 2-Bolt SAE-A Mount SAE 6B Splined Shaft SAE O-Ring Ports, Low Speed High Torque for Construction Agricultural Machinery

• [?] Ready-to-Install – Complete Assembly: Box contains one hydraulic motor 101-1083-009 with primer low gloss black finish. ?????????: ?????? ?.??? ???? ????? ????????, ?-???? ??????? (?.??? ???? ???? ??????), ??? ??? ?? ??????? ????? ?????? ????????. ?????? ???? ??? ????? ??????? ???? ?????????'? ???????? ???????, ????? ????, ??? ???? ?????????????. Flush hydraulic lines prior to installation. Max operating temp 180°F. Replacement seal kit available.
• [?] Direct Swap – 5.9 cu/in Displacement: This hydraulic motor 101-1083-009 replaces for Char-Lynn H Series models with 5.9 cu in/rev (96 cc/rev) displacement. The 2-bolt SAE-A flange mount with 3.248 inch pilot diameter and 4.187 inch bolt circle lets this 101-1083-009 hydraulic motor bolt directly onto agricultural equipment, conveyors, and turf care machinery without modifications.
• [⚙️] Splined Shaft – SAE 6B with 1 Inch Diameter: This H series hydraulic motor features a 1 inch SAE 6B splined shaft with 1/4-20 UNC-2B threaded end hole. The splined shaft design on this 101-1083-009 replacement hydraulic motor provides secure torque transmission without key wear issues, making it ideal for demanding low-speed high-torque applications.
• [?️] SAE O-Ring Ports – 7/8-14 UNF-2B: For Char-Lynn style hydraulic motor features 7/8-14 UNF-2B SAE O-ring side ports for reliable leak-free sealing. The O-ring design on this 101-1083-009 hydraulic motor creates connections without thread sealant, saving installation time on agricultural and industrial equipment. No case drain required.
• [?️] Spool Valve Design – High Efficiency: This 101-1083-009 replacement hydraulic motor uses proven spool valve technology with hydrodynamic journal bearings for infinite bearing life at rated loads. The design combines valving and bearings into a common shaft, offering instant shaft reversal by simply changing flow direction and smooth operation across the entire speed range.
