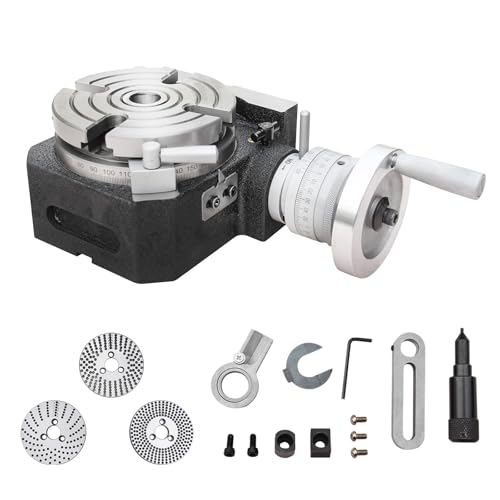

Rotary Table, 4.3 in with Dividing Plates, KAKA INDUSTRIAL HVP-41

Rotary Table, 4.3 in with Dividing Plates, KAKA INDUSTRIAL HVP-41

• 4.3-Inch Rotary Table with Dividing Plates: The HVP-41 combines a 4.3 in (110 mm) horizontal vertical rotary table with three included index plates, giving machinists more indexing options than a basic rotary table.
• Included 15-49 Hole Index Plate Set: Plate A includes 15, 16, 17, 18, 19, and 20 holes; Plate B includes 21, 23, 27, 29, 31, and 33 holes; Plate C includes 37, 39, 41, 43, 47, and 49 holes for repeated angular spacing.
• Horizontal and Vertical Operation: Use the table horizontally for circular milling, hole patterns, and spot facing, or mount it vertically for index boring and end work on compatible milling and drilling machines.
• 1:72 Worm Gear and 360 Degree Graduation: The HVP-41 uses a 1:72 worm gear ratio with 5 degrees of table rotation per handwheel revolution and 360 degree table graduation for controlled setup and repeat positioning.
• MT2 Center and Compact Workholding: The MT2 center taper, 0.47 in (12 mm) T-slots, 120 degree T-slot spacing, and cast iron body support small-part clamping. Based on listed capacity, the table supports 88 lb horizontal and 44 lb vertical loading.
