RioRand®CNC 6 Axis DB25 Breakout Board Adapter For PC Stepper Motor Driver MACH3 KCAM4 EMC2 + DB25 Cable
Product Description

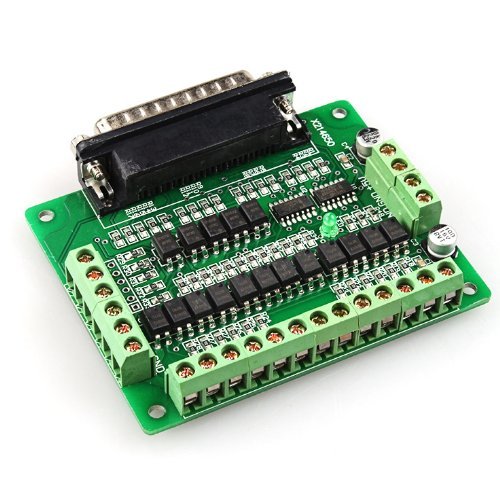

RioRand®CNC 6 Axis DB25 Breakout Board Adapter For PC Stepper Motor Driver MACH3 KCAM4 EMC2 + DB25 Cable
- Powered by RioRand Advanced Technology
- 6 axis Breakout board
- Compatible: KCAM4 MACH2/3 EMC2
- CNC DB25 Breakout Board adapter for PC Stepper Motor Driver
- CNC interface board, you can make your computer into a powerful CNC controller!
Built in DB25 male connector.
DB25 Output Pin:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17.
DB25 Input Pin: P10,P11,P12,P13,P15.
DB25 GND Pin: P18-P25.
Power supply: +5V DC.
Built in C-class Optical-coupler.
High quality with Surface-mount Tech.
General in the software
P2 P3 is set to X-axis for the X-axis pulse
P4 P5 is set to Y-axis, Y axis pulse
P6 P7 is set to Z-axis Z-axis pulse
The other can be set to A B C axis
A-axis pulse P8 P9 is set as the A axis
P14 is set to B-axis B-axis pulse P1
P16 P17 is set to C-axis, C axis pulse
Can also be set to the spindle control signal \ electrical permit
Input interface for the P10 P11 P12 P13 P15
In software is set to trip the limit switch input, and XYZ
Package List :
1 * CNC 6 axis Breakout Board interface adapter
1 * DB25 Parallel cable
