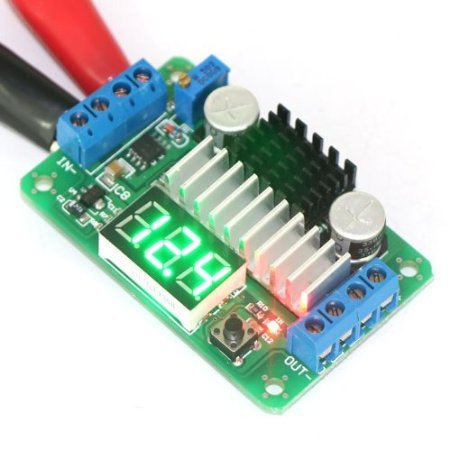

RioRand 100W/6A LTC1871 DC Step Up Converter 3.5V-30V 5 V 12V Regulated Power Supply+Voltage Meter Green LED Module Step Up 5V/12V Regulated Voltage Supply

Features:

Dimensions: 67x42x18 mm (L*W*H)

Input voltage: DC 3.5V-30V

Output voltage: DC 3.5V-30V (boost,input voltage < or = output voltage)

Continuous current: 6A (long-term work)

Maximum input current: 10A (peak)

Output power: Max 100W, (U-in * I-in * Efficiency = U-out * I-out)

Voltmete display color: Green

Voltmeter accuracy: ± (0.5%+1 digit)

Static power consumption: typically around 15ma

LED indicator:Have

Anti-reverse protection: Have

IN+: Positive input

IN-: Negative input

OUT+: Positive output

OUT-: Negative output



Stop Working Mode:

Press the button up to 4 seconds until the LED display off. release the switch, the LED indicator lighting, and the module do not have memory function,

Press thr switch again, the module will work normal


Module will automatic memory Current work status as boost status, please check below memory mode:

[0] Default Boot display output voltage

[1] Default Boot display input voltage

[2] Default Boot display input and output voltage alternately



Package included:

1x LTC1871 Boost Power Converter+Voltmeter Display
