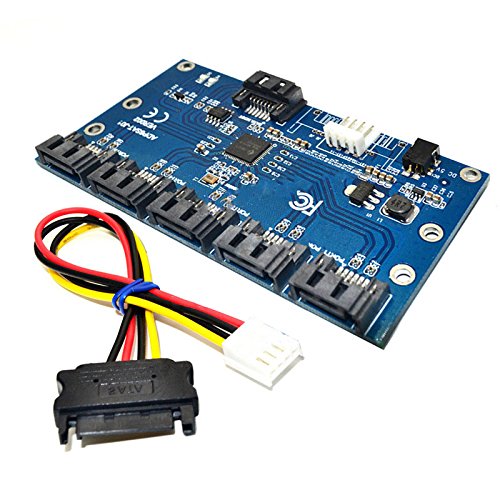

Qjoy Adapter Card SATA 1 to 5 Port Converter SATA Port Multiplier Riser Card Hub

Product ID: B073W978GV Condition: New

Sold Out

Product Description

Use JMB321 chip. Output swing control and automatic impedance calibration for SATA II PHY.
A turn 5 SATA port multiplier support for up to five SATA hard drives. It provides SATA expansion ports, data protection and summarized in a variety of different applications performance.
Mainframe computer terminal (Host), must be supported by SATA port multiplier (SATA Port Multiplier) function motherboard or expansion card.
Provides a DC Jack for DC Power Input.
Board size(L*W*H):10.10*5.50*1.20cm/3.98"*2.17"*0.47".SATA 7P Cable length:38.00cm/14.96".

Features:
Supports 6-port 3.0Gbps SATA II interface
Supports asynchronous signal recovery
Supports spread spectrum clocking
Supports partial / slumber power saving mode
Automatically speed negotiation
Supports BIST and loopback mode
Supports staggered spin-up (Optional)
Supports Hot-Plug
Supports asynchronous notification
Supports ATAPI drives
Supports command-based and FIS-based switching
Supports PM aware and non-PM aware host
Supports cascaded mode
Supports executing host loaded firmware code
Supports SATA 1.5 Gbit / s or SATA 3.0 Gbit / s transmission speed
Supports SATA hot swap
Package Include:
1 x Adapter Card
1 x SATA 7P Cable
