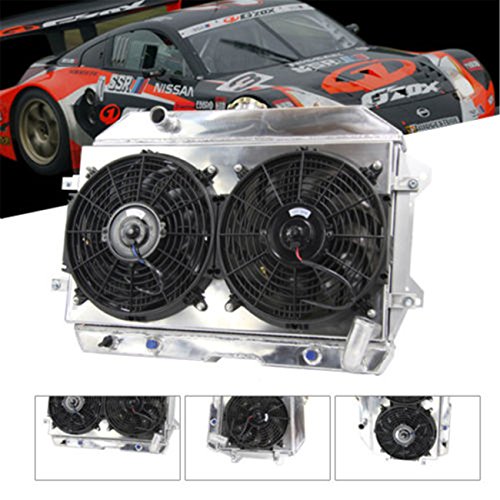

Primecooling 3 Row Full Aluminum Radiator w/ Cooling Fan (10 Inches Dia.) +Shroud for Nissan Datsun 240Z / 260Z ,Fairlady 1970-75

The aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight,and high heat transferring aluminum features a tube and fin design that,dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 40% more efficient than stock ones. Most importantly,it has a much higher capacity for coolant than stock ones,which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

RADIATOR SPEC:
Core Size :13 3/4" H X 23 1/4" W
Overall Size :19 3/4" H X 27 1/4" W
UPPER HOSE CONNECTION :1 1/4" (LEFT SIDE)
BOTTOM HOSE CONNECTION :1 1/4" (RIGHT SIDE)
Trans cooler details: M14*1.5

FAN SPEC:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 10.050"
Thickness (in): 2.500"
Number of Blades: 6 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
