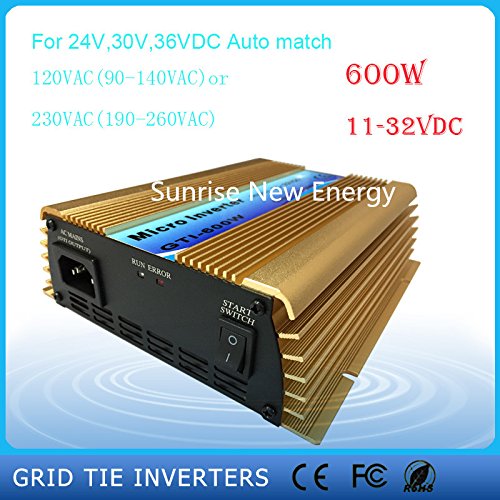

Power Solar Micro Inverter Grid tie 600w

Product Installation Instructions: 1. Green LED a) 120VAC/230VAC Indicators: associated LED lights up when run for power grid voltage detection. b) 50/60Hz Indicators: associated LED lights up when run for frequency detection. 2. Start up DC Voltage Detection Indicator (Power Output Display) a) Within 10-20V DC input voltage range, one LED indicator flash b) Within 20-30V DC input voltage range, two LED indicators flash c) Within 20-30V DC input voltage range, two LED indicators flash d) Within 40-50V DC input voltage range, four LED indicators flash e) Within 50-60V DC input voltage range, five LED indicators flash Remark: LED indicators run from bottom to top and flash and detecting time is 10 times, 0.5s/time. 3. Output Power LED Indicators (Power output display) a) Output power within 10-100W, one LED indicator flash b) Output power within 100-200W, two LED indicators flash c) Output power within 200-300W, three LED indicators flash d) Output power within 300-400W, four LED indicators flash e) Output power within 400-500W, five LED indicators flash Remark: LED indicators run from bottom to top and flash. 4. Please note that above operations only run at grid-connected status.
