Industrial & Scientific > Industrial Electrical > Passive Components > Capacitors

Panasonic FC 470uF 35v Aluminum Electrolytic Capacitors - Leaded,3000 hours @ 105C, 20% Tolerance, 10x20mm ( Pack of 12)

Product ID: B076QXXML1 Condition: New

$ 61

includes Duties & VAT

Delivery: 10-20 working days

Ships from USA warehouse.

Secure Transaction

VISA Mastercard ozow

Product Description

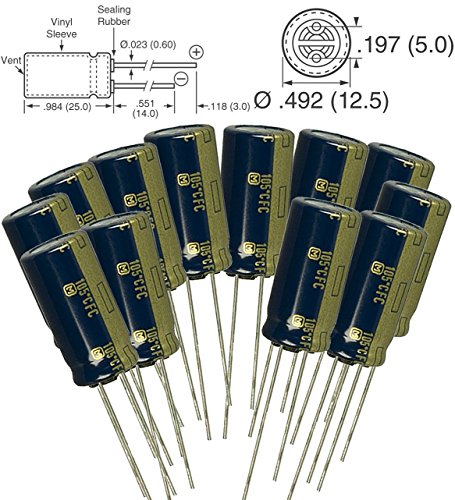

Panasonic FC 470uF 35v Aluminum Electrolytic Capacitors - Leaded,3000 hours @ 105C, 20% Tolerance, 10x20mm ( Pack of 12)

Panasonic 470uF 35v Capacitors (Pack of 12)
Capacitance:470 uF, 35V
Tolerance:20 %
Product:High Temp Electrolytic Capacitors
Dimension: 10mm x 20mm (H) / Lead Space: 5.0mm

OverView: Choose this electrolytic aluminum capacitor from Panasonic for its relatively high ESR. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 Â°C. The aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. Its capacitance value is 470uF. It has a tolerance of 20%. Its leakage current is 164.5@2Min Î¼A. This product is 20 mm tall with a diameter of 10 mm.

Specifications
Manufacturer:Panasonic
RoHS:RoHS Compliant Details
Series:FC
Termination Style:Radial
Capacitance:470 uF
Voltage Rating DC:35 VDC
Tolerance:20 %
Ripple Current:1.22 A
Maximum Operating Temperature:+ 105 C
Diameter:10 mm
Length:20 mm
Lead Spacing:5 mm
Product:High Temp Electrolytic Capacitors
Life:3000 Hour
ESR:52 mOhms
Qualification:AEC-Q200
Brand:Panasonic
Minimum Operating Temperature:- 55 C

What's included:
Panasonic 470uF 35v Capacitors (Pack of 12)
