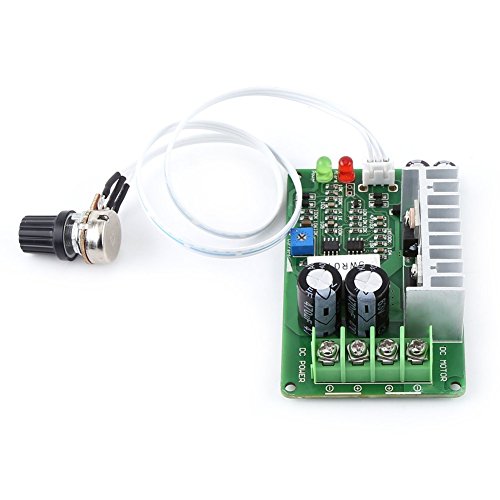

PWM DC Motor Speed Controller, 12V/24V/36V Regulator Potentiometer Overload Protector Motor Speed Control Board 15A
Product Description
PWM DC Motor Speed Controller, 12V/24V/36V Regulator Potentiometer Overload Protector Motor Speed Control Board 15A
- 1A-10A: The current of this motor speed controller can be adjusted from 1A to 10A, and it is simple to set.
- CONVENIENT: Rotate the knob to change output so to change the revolving speed of motor.
- FIT 12V AND 24V: Pwm dc motor speed controller is suitable for motors of which voltage is 12V with power less than 120W and that is 24V with power less than 200W.
- EASY CONNECTION: The positive and negative pole of motor can be connected one way or another. Exchange the pole when the rotation direction is not as expected.
- MAKE SURE RIGHT CONNECTION: Please make sure the positive and negative polarity is connected correctly, otherwise the controller will be damaged.
Specifications:
Resistance: 100KWire Length: 40cm
Voltage Range: DC10V~40V(DC12~36V suggested)
Power: 12V*10A=120W;24V*10A=200W,.....36V*10A=360W
Current: 10A(rated), 15A(Max.), adjustable from 1A to 10A
Speed Adjustable Range: 0-100%
PWM Frequency: 21kHz
Size: 85.5mm x 54mm x 27mm / 3.36 x 2.12 x 1.06"
Package Includes:
1 x Motor Speed Controller
Technical Specifications
