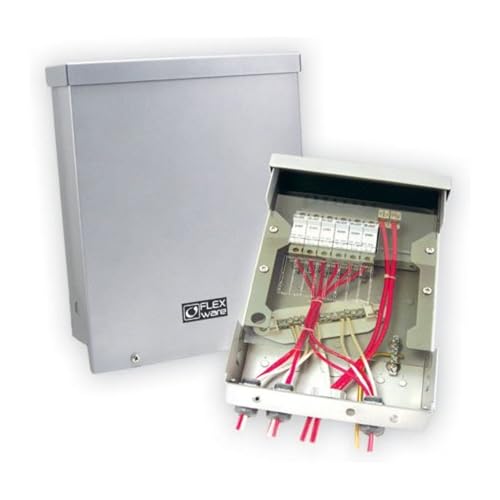

OutBack FWPV-12 Combiner Box
Product Description
OutBack FWPV-12 Combiner Box
- Powder coated aluminum with stainless steel hardware.
- Outdoor Rainproof, NEMA 3R.
- Holds Up to 12 (two groups of six) 150VDC DIN breakers or 8 fuse holders (sold separately).
- One or Two output DC Circuits to controller(s).
- ETL Listed to UL1741, UL67, CSA22.2 #29
FLEXwareTM PV Combiner Boxes The FLEXware PV Combiner Box Series takes installations to the next level and sets a new standard for PV balance-of-system hardware. Ideal for both small and large systems, the FLEXware PV12 accommodates an application's overcurrent protection requirements. Holds up to (12) 150VDC DIN rail type breakers or (8) 600VDC fuse holders (breakers and fuse holders sold separately). Designed to survive in outdoor environments, the rainproof, UL-type 3R powder coated aluminum chassis can be mounted on a wall, sloped roof or pole. The unique angled negative terminal bus bar design make wiring fast and easy without the common problem of larger output conductors blocking access to the smaller input terminals. Dual output lug terminals are included for up to 2/0 AWG conductors. The tinted flame-retardant polycarbonate "dead" front panel creates a clean appearance while preventing accidental contact with the live terminals and is easily removable during installation. Use appropriate wire size in accordance with NEC.
