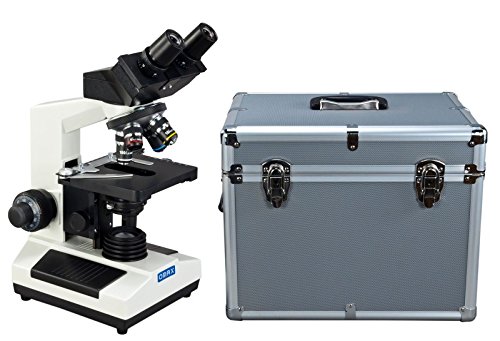

OMAX 40X-1600X Compound Binocular Microscope with Aluminum Carrying Case

Product ID: B00FG8AAU6 Condition: New

Sold Out

Product Description

Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45degrees;Inclined 360degrees;swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55~75mm); Diopter: adjustable on both eyepiece tubes
Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer size 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control
Focusing knob can be locked for observation and transportation; Condenser and diaphragm: NA1.25 Abbe condenser with iris diaphragm and filter holder, rack and pinion adjustment; Black palm rest on the base; Illumination: transmitted (lower), 6V 20W halogen light, variable intensity; Metal framework; Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug)
Dimension of microscope: 7-7/8 inch x 10-1/4inch x 15-3/8inch (20cm x 26cm x 39cm); Outer dimensions of aluminum case : 16~1/2inch(L) x 12~1/2inch(W)x 13-3/8inch(H) (42cm x 32cm x 34cm); Lower part inner dimensions of aluminum case: 15~3/4inch(L) x 11~3/4inch(W)x 9~1/2inch(H) (40cm x 30cm x 24cm); Upper part inner dimensions of aluminum case: 15~3/4inch(L) x 11~3/4inch(W)x 2-1/4inch(H) (40cm x 30cm x 5.4cm)
5-year warranty against manufacturing defects

This is a professional binocular compound microscope with an aluminum carrying case. It offers eight levels of magnification: 40X-1600X. The compound microscope comes with a 45 degree inclined 360 degree sliding binocular head, body frame, revolving quadruple nosepiece, two pairs of widefield eyepieces, four DIN achromatic objectives, large double layer mechanical stage, Abbe NA1.25 condenser with iris diaphragm and a halogen illumination system. It's capable to add USB camera, darkfield condenser or phase contrast condenser, e.g. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This binocular microscopy is good for teaching, demonstration, clinical examination and research purpose.
