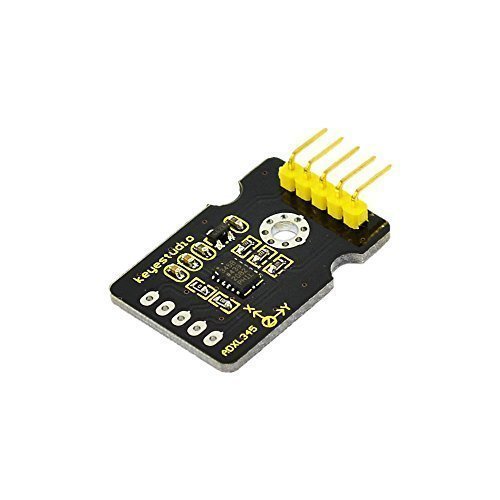

New! Keyestudio ADXL345 Three Axis Acceleration Module for Arduino UNO&MEGA/raspberry pi/AVR/STM32
Product Description
New! Keyestudio ADXL345 Three Axis Acceleration Module for Arduino UNO&MEGA/raspberry pi/AVR/STM32
- CE and FCC certificates are available
- Free-Fall Detection SPI and I2C interfaces
- ADXL345 CHIP
- Video Tutorial:https://www.youtube.com/watch?v=brYmZmwg2Gs
- PDF tutorial download here: http://7326097.s21d-7.faiusrd.com/0/ABUIABA9GAAgvJiYsQUouKLa4Qc?f=ks0012+ADXL345+Three%C2%A0Axis+Acceleration%C2%A0Module.pdf&v=1445334076
Introduction:
The ADXL345 is a small, thin, low power, 3-axis MEMS accelerometer with high resolution (13-bit) measurement at up to +-16 g.
Digital output data is formatted as 16-bit twos complement and is accessible through either a SPI (3- or 4-wire) or I2C digital interface.
The ADXL345 is well suited to measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0 degrees
Specification:
2.0-3.6VDC Supply Voltage
Ultra Low Power: 40uA in measurement mode, 0.1uA in standby@ 2.5V
Tap/Double Tap Detection
Free-Fall Detection SPI and I2C interfaces
Size: 30*20mm
Weight: 3g
