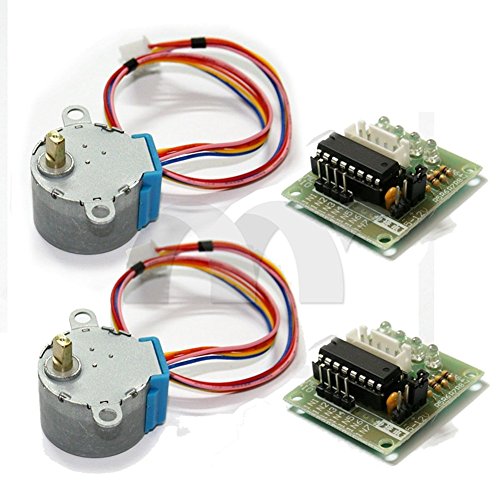

Neutral 2 Set Stepper Motor DC 5V 28BYJ-48 & ULN2003 Driver Test Module Board for Arduino

Product ID: B071LT1PK5 Condition: New

Sold Out

Product Description

- Rated Voltage: DC5V 4-phase - Step angle: 5.625 x 1/64 - DC Resistance: 200ω±7% (25C)
- Insulation Resistance: >10Mω (500V) - Dielectric Strength: 600V AC / 1mA / 1s - Insulation Grade: A
- No-load Pull in Frequency: >600Hz - No-load Pull out Frequency: >1000Hz - Pull in Torque: >34.3mN.m(120Hz)
- Detent Torque: >34.3mN.m - Temperature Rise: <40K(120Hz) - Noise: <40dB (120Hz, No load, 10cm)- Cable length :23.5CM
- A, B, C, D four-phase LED indicates the status of the stepper motor work. Stepper motor with a standard interface, when used directly pluggable. Drive Module Board Size:2.8cm x 2.8cm x 2cm

2pcs Stepper Motor DC 5V 28BYJ-48 & ULN2003 Driver Test Module Board for Arduino Feature: - Rated Voltage: DC5V 4-phase - Step angle: 5.625 x 1/64 - DC Resistance: 200Ï‰Â±7% (25C) - Insulation Resistance: >10MÏ‰ (500V) - Dielectric Strength: 600V AC / 1mA / 1s - Insulation Grade: A - No-load Pull in Frequency: >600Hz - No-load Pull out Frequency: >1000Hz - Pull in Torque: >34.3mN.m(120Hz) - Detent Torque: >34.3mN.m - Temperature Rise:
