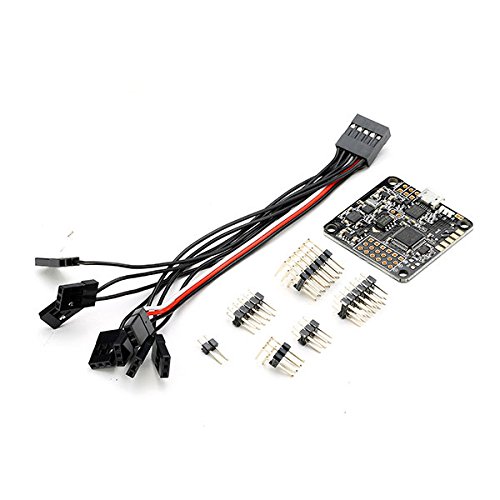

Naze32 10DOF Rev5 MPU6050 Flight Controller for Quadcopter QAV250 ZMR250 etc
Product Description
Naze32 10DOF Rev5 MPU6050 Flight Controller for Quadcopter QAV250 ZMR250 etc
- Flexible motor outputs, support various airframe types: Quad/Hexa/Tri/Bi/Y4/Y6/Octo/Camera Gimbal. (Default is Quad-X)
- Up to 8 ch RC input - supports standard receivers (PWM), PPM Sum receiver (FrSky, etc), or Spektrum satellite receivers.
- Built in FrSky telemetry inverter (shared w/main port)
- Battery voltage monitoring
- Modern 32-bit processor running at 3.3V/72MHz (STM32F103CB).
Specification:
Item name:Naze32 Flight Controller
Size:36X36mm (30.5mm Mounting)
Weight :5.3 grams (no headers,7.3 grans with)
2000 degrees/second 3 Axis MEMS gyro + accelerometer(MPU6050)
Input voltage:Max 16V on input rail and up to 35V 6s on the voltage sense line
Package Included:
1 X Naze32 10DOF Flight controller 1 X Cable
Technical Specifications
