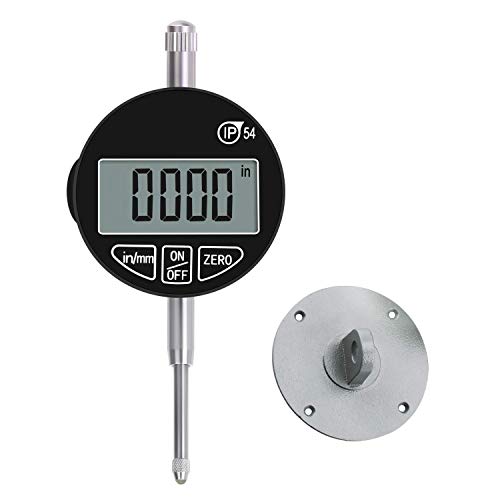

Navigator 1 Inch Digital Dial Indicator,IP54 Specifications, Inch/Metric,Flat/Lug Back
Product Description
Navigator 1 Inch Digital Dial Indicator,IP54 Specifications, Inch/Metric,Flat/Lug Back
- IP Code:IP54, IEC 60529-2013
- 0-1"Range;0.0005"Resolution;± 0.0005"Accuracy;Inch/Metric
- PCB Coating Treatment.LCD Screen: 1.6" x 0.7";Stem Diameter: 8mm
- Super Smooth Movement
- Power:3V CR2032 LITHIUM BATTERY. Operating Temperature:0～40℃.Relative Humidity:≤80%
Manufacturer Intro:
Navigator Hardware is a manufacturer of various types of instruments & measuring equipment. The company produces all kinds of Dial Indicators, Dial Test Indicator, lever table,Thickness Gauge,Shaw Hardness,Knife table,widely used in machinery , electronics, mold, metallurgy, rubber, aerospace areas.
Product description
Professional Grade Tool!
Precision, durable materials, professional heat treatment, high quality.
Warranty:Any Damaged, Any Reason, Any Question, we can do it right!
Technical Details
Product Name:Digital Dial Indicator
SKU: D180720-DIG1
Measuring Range: 0-1"(25.4mm)
Stem Diameter: 5/16"(8mm)
Dial Diameter: 2.25"(57mm)
Graduations: 0.0005"
Back Cover:A Flat back & A Lug back with a 1/4" hole
Back Material: Aluminum Alloy
Probe Material: Stainless Steel
Contact Point Material: Carbide Steel
Manufacture Standards: ASME/ANSI Standards
Degrees of Protection:IP54, IEC60529-2013
Product Weight: 6.0 ounces
Product Size: 5.2 x 2.3 x 1.2 inchs(L*W*T)
Shipping Weight: 8.0ounces
Package Size: 6.0 x 3.7 x 2.3 inches(L*W*T)
Package Content: 1 x Dial Indicator
1 x Lug Back
1 x Carbon Case
Technical Specifications
