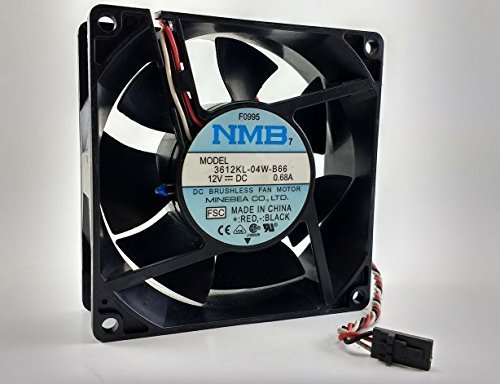

NMB 3612KL-04W-B66 12V 0.68A DC Brushless Fan Dell Dimension Precision PowerEdge 9M060, 8J208, 929FF, 21KTM, 6R757, F0995, 4W022, T0746, 3N170, E186583 92mm x 32mm 3 Pin 3 Wires Connector

NMB Brand Fan

F0995 Model 3612KL-04W-B66

VERY IMPORTANT: This fan has a 3 Wire - 3 Pin Connector

RED WIRE is in the Middle on the Connector Side.

If your old Fan Connector is wired DIFFERENT - This fan will not work

Some fans have 4 Wires and 5 Pin Connector



12V 0 .68Ah

Dimensions: 92mm x 32mm (3-5/8 inch x 1-1/4 inch)

Thermal control - speeds up as necessary

Relevant Dell Part Numbers: 9M060, 8J208, 929FF, 21KTM, 6R757, F0995, 4W022, T0746, 3N170, E186583 (Plastic mounting bracket is not included)

SPECIAL 3 PIN BLACK DELL CONNECTOR ATTACHED WITH LATCH

Specifications: 92x92x32mm, 25.0 CFM @ 1400 RPM, 17 dB, 1.25w .68 Startup

Amperage, 12v DC, 3 pin connector with rpm output.

Specifications listed are constant from 0 to 25°C.

Also known as Dell part # 7J639. Cable length is approximately 7.5 inches Maximum

Output Specifications: When temperature is 131 F, specifications are 69.91 CFM @ 3800 RPM, 43.5 dB, 5.64w.

This unit is compatible with these systems: Dimension 2400 Dimension 2300 Dimension 2350 Precision Workstation 210 Precision Workstation 220 Precision Workstation 330 Precision Workstation 410 Precision Workstation 420 Precision Workstation 610 Precision Workstation 620 OptiPlex GX200 PowerEdge 1400SC PowerEdge 4300 PowerEdge 6300 This fan has also worked perfectly with: Dimension 4300 4400 4500 4550 4600 4700 8100 8200 8250 8300 Optiplex GX150 GX240 GX260GX270 GX280 GX400
