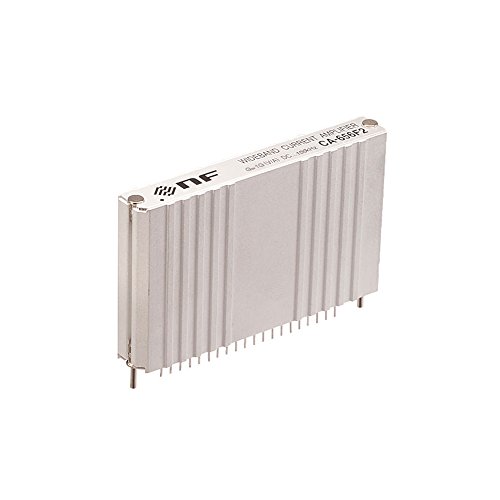

NF Corp. Wideband Current Amplifier CA-656F2, DC to 100kHz
Product Description
NF Corp. Wideband Current Amplifier CA-656F2, DC to 100kHz
- CA-650 series is low noise wideband current amplifiers (current to voltage converter) with a high gain and wide frequency band
- Gain : 1G V/A, Frequency : DC to 100kHz
- Current noise : 6fA/√Hz(typ.)
- Stable operations even with the capacitance of the connecting cables and sensors
- Single-inline package
Specifications
Input Section
Input type : Single-ended , Max. input current : ± 10nA , Input impedance : 10kΩ ,
Recommended signal source resistance : 100MΩ or more , Input bias current : ± 1pA(typ.)
Output Section
Output type : Single-ended , Max.output voltage : ± 10V , Max. output current : ± 5mA , Output impedance : 50Ω ± 10% , Output offset voltage : ± 5mV
Amplifier Section
Phase between input and output : In-phase , LPF : 10kHz (typ.) , RoHS: Directive 2011/65/EU
Others
Supply voltage : ± 15V ± 1V , Quiescent current : ± 40mA or less , ± 27mA(typ.) , Dimensions : 20pin, SIP, 66.7(W)x 10.5(D)x40.8(H), Approx.40g
Based on this product, NF will respond flexibly customers requirement
Technical Specifications
