Motorized Mini Metal Working Lathe Machine DIY Tool Mini Metal Bow Arm 6 In 1 Kit Tool For Hobby Sience Education Modelmaking

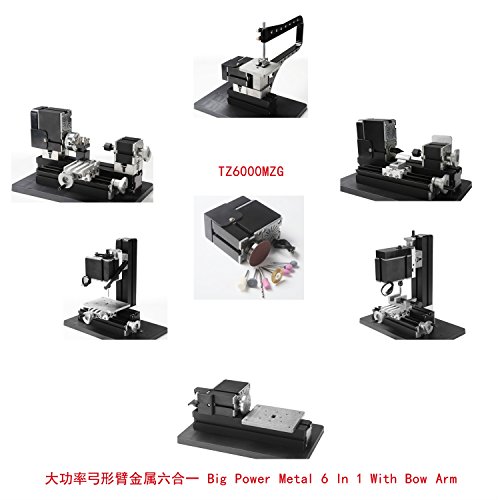

This machine kit can be assembled into

1)Bow-arm Jigsaw

2)Wood-turning lathe

3)Metal lathe

4)Milling machine

5)Drilling machine

6)Sanding machine

7)Hand-held machine

Only one kind of machine can be assembled at the same time.

Features:

1. Motor case and headstock are jointed. Maximum motor power is 144W by using more powerful motor. All metal components are electroplated to make the machine more beautiful and practical.

2.Main parts: headstock, central block, jigsaw base, jigsaw casing, motor blade, gear, woodturning chisel base, cross slider, big slider, drilling lever, drilling table, jigsaw table, connection piece, tailstock, sanding paper panel, machine vice(all of the parts above are made of metal), drive belt cover, grinding wheel, wheel guard.

Technical parameters:

1.Motor speed :12,000rpm/min

2.Input voltage/current/power:12VDC/5A/60W ,

Switching power input:AC110V-240V

3. Jigsaw table: 120mm*100mm

4.Maximum diameter for woodturning lathe: 50mm

5.Length for metal lathe and woodturning lathe: 135mm

6.Center height of metal lathe:75mm

7.Slider travel: Axis X=145, Axis Y=30, Axis Z=30 (mm)

8.Collets:1-6mm

9. Working table for drilling: 123*100mm

10. Maximum size of  machine vice: 50mm

11. Maximum diameter of three-jaw chuck: 50mm

12.Thickness of jigsaw: hardwood(4mm), plywood(7mm), soft wood(18mm), aluminum(0.5mm), acrylic(2mm).

All machines are safe to touch except milling machines. It is requested to use under adult's instructions.
