Mihappy RFID Sensor Module Kits Key Card IC Card for Arduino UNO Mega 2560 R3 Nano AVR Raspberry Pi
Product Description
Mihappy RFID Sensor Module Kits Key Card IC Card for Arduino UNO Mega 2560 R3 Nano AVR Raspberry Pi
- Basic on the Philips MFRC522 Chip
- Power Voltage : 3.3V, Current :13-26mA
- Operating frequency: 13.56MHz
- Read Range: 0 60mm (mifare1 card)
Mihappy Radio Frequency Identification (RFID) 13.56 MHz module Kit.
With it , you can Read and Write Rectangle Tags and Round Tags.
The RFID Reader Module can be used in a wide variety of hobbyist and commercial applications, including access control, automatic identification, robotics, navigation, inventory tracking, payment systems, and car immobilization.
Features : Basic on the Philips MFRC522 Chip.
Power Voltage : 3.3V.
Current :13-26mA.
Operating frequency: 13.56MHz.
Read Range: 0 ~ 60mm (mifare1 card).
Interface: SPI.
Dimensions: 40mm × 60mm.
Size of Round Tag : 0.87 × 85.5 × 54 mm.
Size of Rectangle Tag : 32 x 40.5 x 4.2 mm.

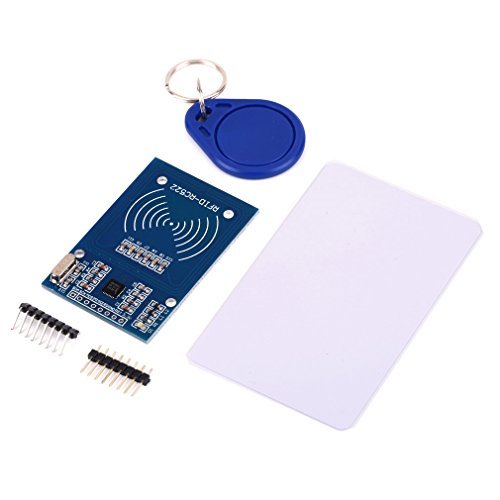

Package Content : 1 X RFID RC522 module.
1 X Round Tag.
1 X Rectangle Tag.
Technical Specifications
