Microseven M7NVR-5MP08 / H.265 8-Channel 5MP POE Embedded NVR ONVIF 1080P/3MP/4MP/5MP Network Video Recorder-Supports Recording 8CH up to 5-Megapixel IP Cameras, Supports up to 6TB HDD (Not Included)
Product Description
Microseven M7NVR-5MP08 / H.265 8-Channel 5MP POE Embedded NVR ONVIF 1080P/3MP/4MP/5MP Network Video Recorder-Supports Recording 8CH up to 5-Megapixel IP Cameras, Supports up to 6TB HDD (Not Included)
- 8-Channel NVR Supports Up to 5MP/4MP/3MP/2MP resolution realtime preview&playback, 1920P/1440P/1536P/1080p @ 30fps Realtime each CH
- Plug & Play setup, Easy to configure, access and control. Scan QR Code on NVR from Free app to instantly access live viewing and playback for your iPhone, Android, PC, Mac, iPad, and Tablets
- Supports Microseven IP Cameras and support for third party brand ONVIF compliant IP Cameras with 1 SATA up to 6TB HDD (Playback speed adjustable 1x/2x/4x/8x/16x for both backward and forward)
- Supports Motion Detection & Email Alerts & USB backup, VGA and HDMI (Maximum HD 1080p) output
- Includes USB backup feature for peace of mind. All systems CE & FCC certified with UL compliant power supplies. Guaranteed for a Full Year from purchase with US Support and US Warranty offered exclusively by Microseven
Model: M7NVR-5MP08
CPU: HI3536C
OS: Embedded Linux OS
GUI
Operating GUI: 16 bits OS GUI via a mouse/virtual keyboard
Videos Display: 1/4/6/8 display frame.
Video
Max Channel Capacity: 8x CH and up to 5MP per channel, Supporting 8MP IP camera.
Video Frame Rate: 30 fps
Video Output Ports: 1x VGA, 1x HDMI
Video Codec: H.264/H.265
Privacy Mask: Supported
Motion Detect Alerts: Supported
Audio
Voice Codec: G.711U, G.711A, G.726
Two-way Talk: None
Audio Input: Video vs voice: 1:1
Audio Output: Supported HDMI audio output, 1-ch RCA audio output
Video Playback
Recording Types: Schedule recording, motion alert event recording, and manual recording.
Bulk Playback: 4xch maximum.
Playback Filter By: Duration playback, event playback, time shaft playback, fast speed playback.
Storage and Backup
Record Storage: Local hard drive.
Backup: USB to external hard disk, USB drive.

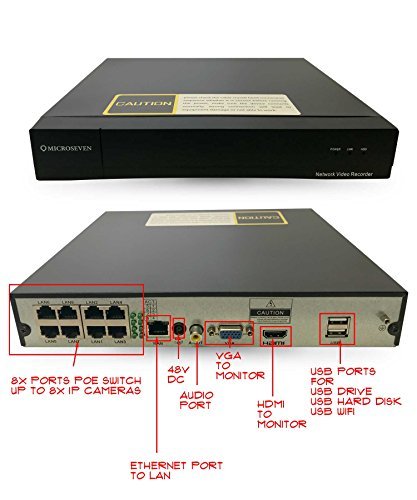

External Ports
Video Output Ports: 1x VGA port and 1x HDMI port
Ethernet Ports: 1x RJ45 Ethernet uplink port to the router 10/100M speed. 8x POE (Power over Ethernet) ports
I/O Alert Port: None
Audio Port: 1x RCA audio out port
485 Ports: None
USB Ports: 2x USB 2.0 ports
SATA Hard Disk Ports: 2x SATA 2.0 ports, each SATA port support max 6TB hard disk. The chassis space fits for one SATA 3.5 inch disk.
Other
PTZ Control: Control IP camera PTZ via software
ONVIF: Supported
Electrical Power: DC48V 3A
Size: 10 1/4 x 8 7/8 x 1 7/8 (W x L x H )
Power Consumption: 15W
Working Environment: -10C to +50C, 10% to 95% MH
PACKAGE INCLUDED
1xM7NVR-5MP08
1xUSB Mouse
1x48V Power Suppply
1xNetwork cable
1xUser Manual
