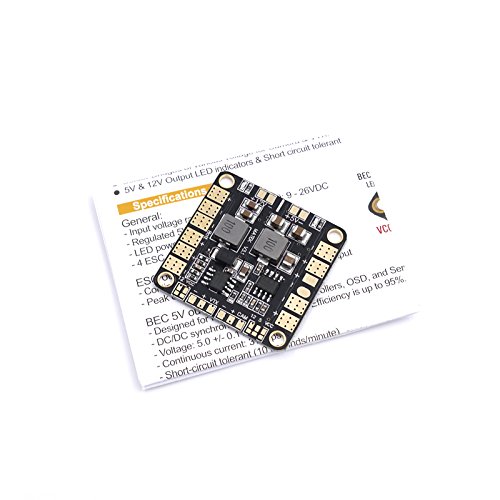

Matek Mini Power Hub Power Distribution Board PDB with BEC 5V & 12V for FPV QAV250 ZMR250 Multicopter Quadcopter
Product Description
Matek Mini Power Hub Power Distribution Board PDB with BEC 5V & 12V for FPV QAV250 ZMR250 Multicopter Quadcopter
- 2oz copper & 4-layers pcb. Esc & battery solder tabs in pairs.
- Solder bridges of various voltage for camera & vtx.
- Dc/dc synchronous buck regulator, efficiency is up to 95%.
- Tvs(transient voltage suppressor) protection for dc/dc chip.
- 5v & 12v output led indicators & short circuit tolerant.
Specification:
General:
- Input voltage range (2S-6S operation): 7.2 - 26VDC
- Regulated 5V and 12V outputs
- LED power indicators ( 5V & 12V outputs )
- 4 ESC outputs
BEC 5V output:
- Designed for RC Receivers, Flight controllers, OSD, and Servos.
- Voltage: 5.0 +/- 0.1VDC
- Continuous current: 3 Amps
- Short-circuit tolerant (10 seconds/minute)
- LED (indicates voltage is in regulation, within 10%) BEC 12V output:
- The battery should be 4S~6S LiPo
- Standard output designed to power cameras and video transmitters,etc.
- Voltage: 12.0 +/- 0.2VDC
- Continuous current: 2 Amps (Max.3A 10s/minute)
- Short-circuit tolerant (10 seconds/minute)
- LED (indicates voltage is in regulation, within 10%) Package including :
1 x Power Distribution Board PDB
