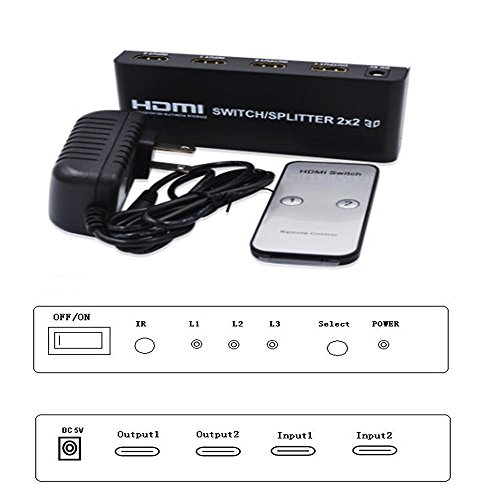

MALLCROWN High Speed 2x2 HDMI Switch Splitte with IR Wireless Remote Control and AC Power Adapter,Black

Product ID: B01LZJHK2S Condition: New

Sold Out

Product Description

1. Support HDMI 1.4b,Support 3D 、4K x2K,Support highest video resolution3840*2160/30Hz
2. Support 2.5Gbps data rate for tmds clock up to320MHz,Support 8/10/12 bit deep color
3. Support AWG26 HDMI standard cable, input up to15metres,, output up to20metres
4. Support single high definition display for multiple sources, such as DVD Players and Digital Projectors, Set Top Boxes.
5. IR Remote Control for operational flexibility and easytocontrol,DC5V/1A power supply

Specifications :
1 .HDMI version: HDMI 1.4b
2. HDMI resolution :24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i/4kx2K
3. Support video color format: 8/10/12 bit deep color
4. Support audio format:DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
5. Max bandwidth:320MHz
6. Maxbaud rate:3.4Gbps
7. Input cable distance:â‰¤15m AWG26 HDMI standard cable
8. Output cable distance:â‰¤20m AWG26 HDMI standard cable
9. Max working current:500mA
10. Power adapter format..Input: :AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
11. Operating Temperature range:(-15 to +55â„ƒ)

Operating and Connecting:
1: Connect two cables from HDMI source device into HDMI Splitter/Switcher input.
2: Connecttwo cables from display intoHDMISplitter/Switcher output.
3: Connect power adapter to the HDMI Splitter/Switcher.

The Package includes:
1 .2X2 HDMI Switcher/Splitter
2. IR Remote Control
3. 5V DC Poweradapter
4. User Manual
