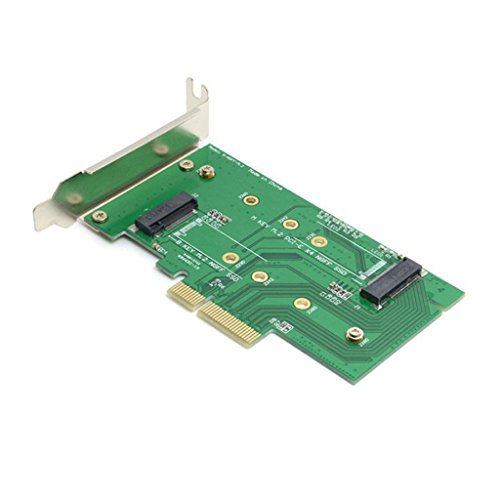

M.2 NGFF PCI-E LANE SSD to PCIE X4&3.0 to SATA Adapter Card For Samsung Xp941

PCI-E NGFF £¨M.2 M KEY SSD£© SSD has to connect to PC with PCI-EX4, X8, or X16 port. Make sure your PC has the ports for the product before bidding.
After connection by PCI-EX4, X8, or X16 port with PC , PCI-E NGFF SSD can be recognized by operation system. The general computer can't read it in BIOS. Hence it doesn't support system setup.
In our testing, Z77 (Win7, Win8) can recognize the SSD and finish Partition after installation. However, it can't find the SSD after the system files copying and restart PC. The reason should be most of the previous BIOS can't support PCI-E device restarting. It's not the issue of the card itself.
M.2 B KEY SSD can work as general drive if it was connected to PC via Sata data cable.
Features:
About M.2 NGFF SSD interface standard:
Socket 2(B key 2 LANE):there are SATA(such as THNSNH128G8NT/ THNSNH128GDNT/MZNTD256HAGM models of SSD) and PCI-E 2X(such as PX-AG128M6E/PX-AG256M6E/PX-AG512M6E/SD6PP4M models of SSD) two different transfer mode.
Socket 3(M key,4 LANE):PCI-E 4X(such as MZHPU128HCGM MZHPU256HCGL and MZHPU512HCGL models of SSD) transfer mode.

Notice:
1.B key M.2 NGFF PCI-E 2X transfer mode SSD and M key M.2 NGFF SSD must inserted in the socket "J1" !
2.B key M.2 NGFF SATA transfer mode SSD must inserted in the socket "J2",and SATA interface must be connected with motherboad!
3.The computre must have a PCI Express x4 socket,version 2.0 or higher.
4.B key M.2 NGFF PCI-E 2X transfer mode SSD can do system startup disk.
5. M key M.2 NGFF SSD do system startup disk need specific Computer Mainboad support,for example ASROCK Z97 Extreme6,
6.This product performance is being improved unceasingly, like has the change, not separate informs even slightly.Pictures for reference only, subject to our available products.
