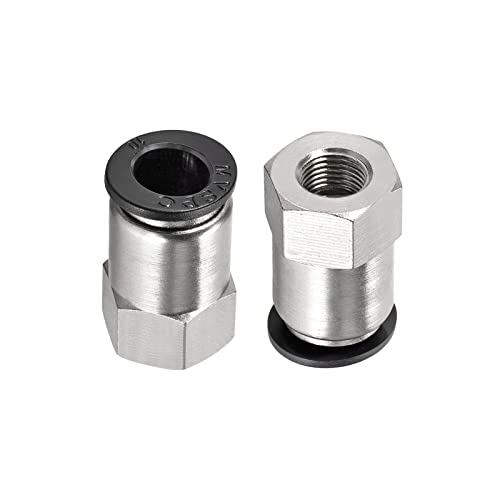

M METERXITY 2 Pack 1/8PT Push Lock Fitting - Straight Union Adapter, Push to Connect Fittings, Apply to Pneumatic System (10mm, Silver)

M METERXITY 2 Pack 1/8PT Push Lock Fitting - Straight Union Adapter, Push to Connect Fittings, Apply to Pneumatic System (10mm, Silver)

• APPLICATION RANGE: The push-to-connect fittings are used for quick connection and repair of polyurethane or nylon tubing to change the direction of water flow between pipes. Widely used for air compression systems, vacuum systems, pneumatic systems.
• DURABLE DESIGN: 1. The female thread socket connector is suitable for the sliding connection of most polyethylene and nylon pipes, which reduces friction to enhance water flow speed. 2. Made of thick and durable brass, which has abrasion resistance, high-pressure resistance, compressive and corrosion resistant, and is lightweight. 3. Push-to-connect tube connection on one end and female threads on the other end design. Elliptical release ring help to connect the tube easily manually.
• FUNCTIONAL TOOLS: This bulkhead connector is designed for easy and quick connection of air pipes.
• PACKAGE INCLUDE: 2 Pack of 10mm to 1/8 PT female connector, which total size is 30mm x 17mm / 1.18 x 0.67 inch (D*H); Female thread size is 1/8 PT; Fit tube outer diameter is 10mm/ 3/8 inch. Operating pressure is 0 to 0.9MPa; Operating temperature is 0 to 60 Degree Celsius.
• NEED ATTENTION: Please note the proper temperature and pressure range to use and cut the pipe flat, with no slope. Insert the tube into the bottom of the fitting and try to pull the tube, if it doesn't come out it's a success. When loosening the tube, first confirm that there is no pressure in the tube, and then press the end cap evenly to the bottom.
