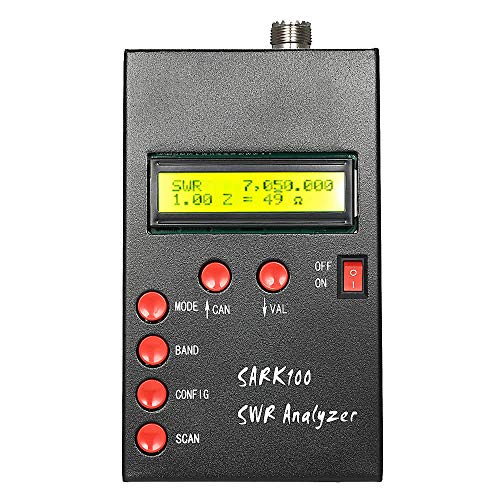

Liuhongyu SARK100 1-60MHz HF ANT SWR Antenna Analyzer Meter Standing Wave Tester Ham Radio Hobbyists Impedance Capacitance Measurement
Product Description
Liuhongyu SARK100 1-60MHz HF ANT SWR Antenna Analyzer Meter Standing Wave Tester Ham Radio Hobbyists Impedance Capacitance Measurement
- Frequency generation & control: 1-60MHz.
- External power: 2.1mm power jack(center pin positive).
- Installed black metal case, just connect the power(not included) and then work.
- Step size: user configurable increments of 100Hz, 1KHz, 10KHz, and 100KHz.
Specifications:
Frequency Generation & Control: 1-60MHz
Source Impedance: 50 ohms
Stability: (+/-) 100 ppm
Spectral Purity: Harmonics Down >- TBD dB beyond 60MHz
Step Size: User configurable increments of 100Hz, 1KHz, 10KHz, and 100KHz
Usable Measurement Range: SWR: 1.0 to 9.99
Impedance: Approx. 5 to 2000 ohms
RF Output: Adjustable: 2.0 Volts pp (typ)
RF Out: BNC
Connectors: RF
Power Supply(NOT Included): Powered by External: DC 12-14V, 500mA
External Power: 2.1mm Power Jack (center pin positive)
USB Interface: Mini USB Receptacle
Item Size: 14.8 8.7 3.3cm / 5.83 3.43 1.3in (L W H)
Item Weight: 536g / 18.91ozÂ
Technical Specifications
